Reset button | Yes |
Product colour | Grey |
Rack mounting | Yes |
AC input frequency | 50/60 Hz |
Power plug type | Type C |
AC input voltage | 100 - 220 V |
Power consumption (typical) | 27.5 W |
Power source | AC |
DHCP features | DHCP snooping |
Security algorithms | SSH-2 |
IGMP snooping | Yes |
IGMP proxy | Yes |
Access Control List (ACL) | Yes |
Authentication | MAC-based authentication, Web-based authentication |
SSH/SSL support | Yes |
Queue scheduling algorithms | Weighted Round Robin (WRR) |
Access Control List (ACL) rules | 1024 |
DoS attack prevention | Yes |
Authentication type | RADIUS, TACACS+ |
Storage temperature (T-T) | -25 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | -5 - 50 °C |
Heat dissipation | 795.2 BTU/h |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
Switch type | Managed |
Configuring Location Settings (CLI) | Yes |
Switch layer | L2/L3 |
MIB support | Y |
Depth | 444.5 mm |
Weight | 3.53 kg |
Width | 298.7 mm |
Height | 43.9 mm |
Link aggregation | Yes |
Virtual LAN features | Private VLAN |
VLAN support | Yes |
Broadcast storm control | Yes |
Spanning tree protocol | Yes |
Policy-based routing | Yes |
Networking standards | IEEE 802.1Q |
Head-of-line (HOL) blocking | Yes |
Port mirroring | Yes |
Cable types supported | Cat5e |
Rate limiting | Yes |
QinQ implementation | Selective QinQ |
Flash Memory | 512 MB |
INTERNAL MEMORY | 1000 MB |
Processor frequency | 1.4 MHz |
Memory type | DDR4-SDRAM |
Plug and Play | Yes |
Mean time between failures (MTBF) | 698220 h |
Built-in processor | Yes |
Package height | 105.9 mm |
Package depth | 575.1 mm |
Package width | 430 mm |
PACKAGE WEIGHT | 5.77 kg |
GARP VLAN Registration Protocol (GVRP) | Yes |
IPv4 & IPv6 features | IPv6 SSH |

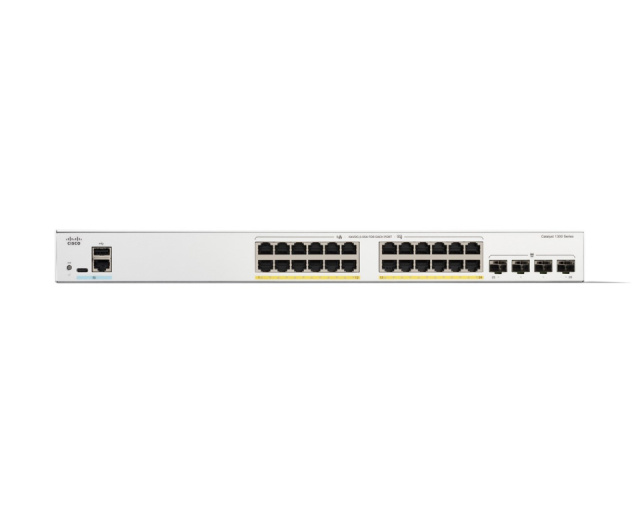

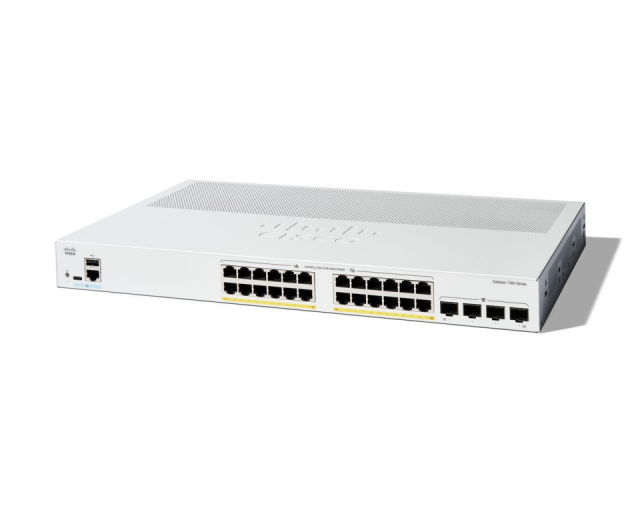

Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
console port | RJ-45/USB Type-C |
SFP module slots quantity | 4 |
Country of origin | China |
Jumbo Frames support | Yes |
Jumbo frames | 9000 |
Number of queues | 8 |
Switching capacity | 56 Gbit/s |
MAC Address Table | 16000 entries |
Number of static routes | 990 |
Packet buffer memory | 1.5 MB |
Static route | Yes |
Power over Ethernet (PoE) ports quantity | 24 |
Power Over Ethernet (PoE) | Yes |
Total Power over Ethernet (PoE) budget | 195 W |
Multicast support | Yes |
