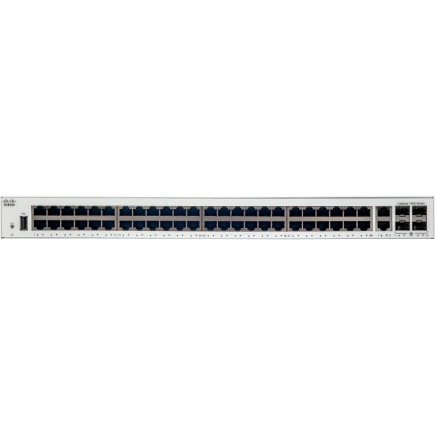

Product Description | Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - rack-mountable |
Device type | Switch - 48 ports - L3 - stackable |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 + 4 x Gigabit SFP (uplink) |
Performance | Stacking bandwidth: 80 Gbps
Switching capacity: 104 Gbps
Forwarding rate: 154.76 Mpps |
Capacity | Virtual networks: 1
IPv4 routes: 11000
IPv4 routing table entries: 3000
IPv6 routing table entries: 1500
Multicast scale: 1000
ACL scale entries: 1500
FNF entries: 16000
VLANs supported: 1024
Switched virtual interfaces (SVIs): 512
QoS hardware queues per port: 8 |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Power | AC 100-240 V (50 - 60 Hz) |
Power Redundancy | Optional |
Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 28.8 cm |
Weight | 4.35 kg |
Manufacturer Warranty | Limited lifetime warranty |
