Product colour | Black |
Rack mounting | No |
LED indicators | Yes |
Housing material | Plastic |
Power consumption (max) | 2.01 W |
DC input voltage | 5 V |
Input current | 1 A |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Quality of Service (QoS) support | Yes |
Switch layer | L2 |
Switch type | Unmanaged |
Weight | 80 g |
Depth | 75 mm |
Width | 111 mm |
Height | 30 mm |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Auto MDI/MDI-X | Yes |
10G support | No |
Networking standards | IEEE 802.3 |
MAC address auto-learning supported | Yes |
Full duplex | Yes |
Mean time between failures (MTBF) | 1142330 h |
Manual | Yes |

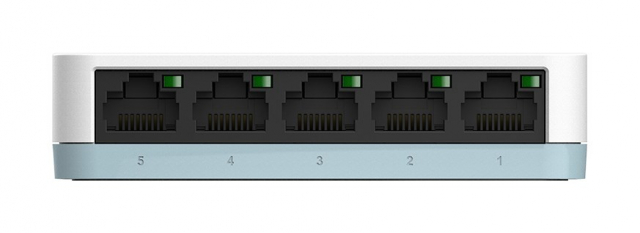

Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Harmonized System (HS) code | 85176990 |
Jumbo frames | 9216 |
Store-and-forward | Yes |
Jumbo Frames support | Yes |
Switching capacity | 10 Gbit/s |
Packet forwarding rate (100 Mbps) | 148800 pps |
Packet forwarding rate (1 Gbps) | 1488000 pps |
Packet forwarding rate (10 Mbps) | 14880 pps |
MAC Address Table | 2000 entries |
Packet buffer memory | 0.128 MB |
Power Over Ethernet (PoE) | No |
