Certification | FCC Class B, CE |
LED indicators | Link |
Product colour | Black |
Rack mounting | No |
Housing material | Metal |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (max) | 70 W |

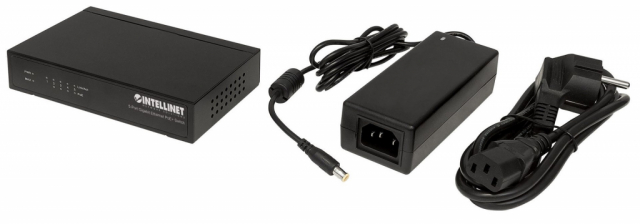

Power supply included | Yes |
Power protection features | Short circuit |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -20 - 70 °C |
Switch type | Unmanaged |
Depth | 76 mm |
Width | 140 mm |
Height | 27 mm |
Weight | 710 g |
Networking standards | IEEE 802.3 |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
Auto-negotiation | Yes |
Copper ethernet cabling technology | 1000BASE-T |
Quick start guide | Yes |
Rack mount kit | Yes |
CABLES INCLUDED | AC |

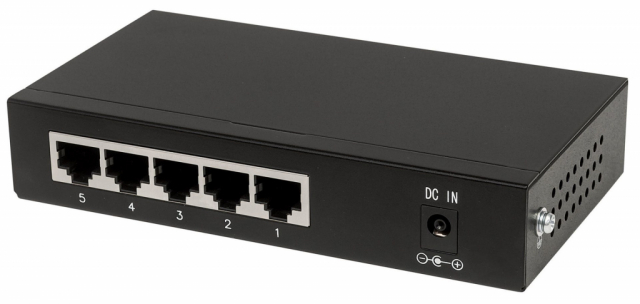

Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Harmonized System (HS) code | 85176990 |
Store-and-forward | Yes |
Jumbo frames | 9000 |
MAC Address Table | 2000 entries |
Packet forwarding rate (100 Mbps) | 148800 pps |
Packet buffer memory | 0.192 MB |
Packet forwarding rate (10 Mbps) | 14880 pps |
Switching capacity | 10 Gbit/s |
Jumbo Frames support | Yes |
Packet forwarding rate (1 Gbps) | 1488000 pps |
Power over Ethernet (PoE) power per port | 30 W |
Total Power over Ethernet (PoE) budget | 60 W |
Power Over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 5 |
