Certification | FCC B, CE |
Rack mounting | Yes |

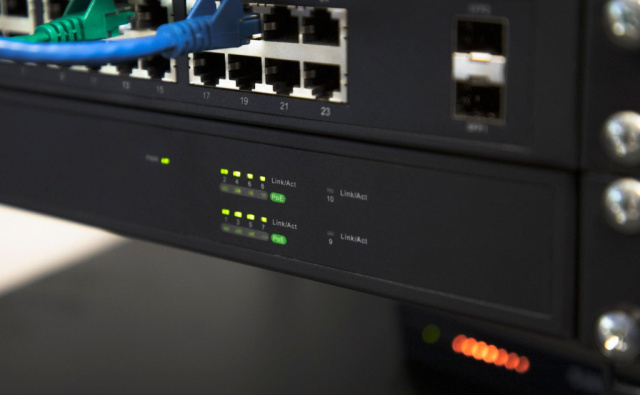

LED indicators | Activity |
Housing material | Metal |
Product colour | Black |
AC input frequency | 50 - 60 Hz |
Power consumption (max) | 270 W |
AC input voltage | 100 - 240 V |
Security algorithms | SNMPv3 |
IGMP snooping | Yes |
Operating relative humidity (H-H) | 20 - 85% |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 70 °C |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Switch type | Managed |
Height | 44 mm |
Depth | 200 mm |
Width | 440 mm |
Weight | 3.2 kg |
Virtual LAN features | Tagged VLAN |
Networking standards | IEEE 802.1D |
Rate limiting | Yes |
Link aggregation | Yes |
Auto-negotiation | Yes |
Auto MDI/MDI-X | Yes |
Port mirroring | Yes |
10G support | No |
Full duplex | Yes |
Spanning tree protocol | Yes |
Copper ethernet cabling technology | 100BASE-TX |
Flow control support | Yes |
Broadcast storm control | Yes |
VLAN support | Yes |
CABLES INCLUDED | AC |
Rack mount kit | Yes |
Manual | Yes |
SFP module slots quantity | 2 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Harmonized System (HS) code | 85176990 |
Forwarding rate | 14.88 Mpps |
MAC Address Table | 8000 entries |
Packet buffer memory | 4.1 MB |
Store-and-forward | Yes |
Switching capacity | 20 Gbit/s |
Power over Ethernet (PoE) power per port | 30 W |
Total Power over Ethernet (PoE) budget | 255 W |
Power Over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 8 |
