International Protection (IP) code | IP30 |
Housing material | Metal |
Product colour | Blue |
DIN rail mounting | Yes |
Wall mountable | Yes |

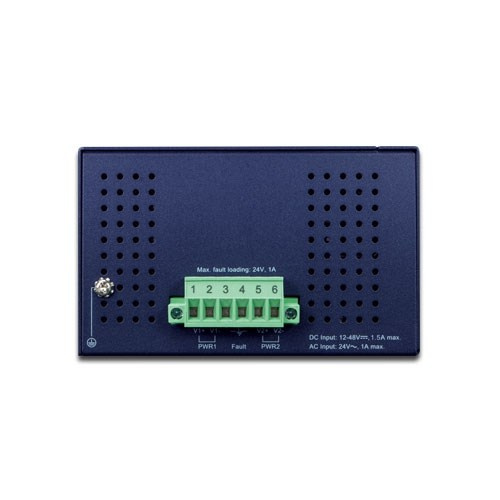

DC input voltage | 12 - 48 V |
Power consumption (max) | 8.7 W |
Storage temperature (T-T) | -40 - 85 °C |
Operating relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | -40 - 75 °C |
Switch type | Unmanaged |
Switch layer | L2 |
Height | 152 mm |
Depth | 107 mm |
Width | 66 mm |
Weight | 743 g |
Networking standards | IEEE 802.3x |
10G support | No |
Full duplex | Yes |
MAC address auto-aging supported | Yes |
Copper ethernet cabling technology | 1000BASE-T |
MAC address auto-learning supported | Yes |
Auto MDI/MDI-X | Yes |
Auto-negotiation | Yes |
Flow control support | Yes |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 16 |
Harmonized System (HS) code | 85176990 |
Jumbo frames | 10000 |
Switching capacity | 32 Gbit/s |
Packet buffer memory | 4.1 MB |
Store-and-forward | Yes |
Jumbo Frames support | Yes |
Throughput | 23.81 Mpps |
MAC Address Table | 8000 entries |
Power Over Ethernet (PoE) | No |
