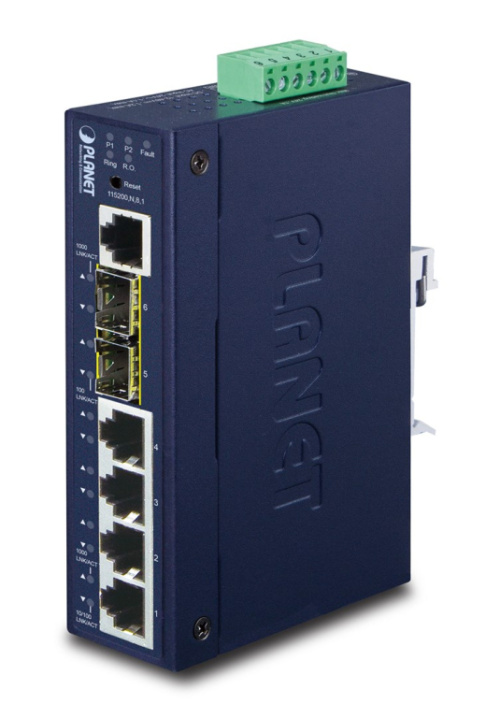

PLANET IGS-5225-4T2S network switch Managed L2+ Gigabit Ethernet (10/100/1000) Blue

€ 276.00
  • Without TAX: € 222.58
  • Brand:Planet Model:IGS-5225-4T2S Availability:Pre-order 3-7 W. Days Quantity:9 pcs. Warranty:24 Months
Get Credit

Adv. payment:

Period:

99 € per month Estimated monthly payment amount. Click "Get Credit" and fill out the application form to receive an offer from banks.
Wall mountable Yes
LED indicators Yes
Reset button Yes
Product colour Blue
DIN rail mounting Yes
Housing material Metal
International Protection (IP) code IP30
DC input voltage 24 V
Power consumption (max) 8.5 W
Redundant power supply (RPS) support Yes
Security algorithms SSH
BPDU filtering/protection Yes
SSH/SSL support Yes
Access Control List (ACL) Yes
IP-MAC-Port binding Yes
IGMP snooping Yes
Authentication MAC-based authentication, Port-based authentication
Heat dissipation 29.2 BTU/h
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 75 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Traffic classification Yes
Switch layer L2+
Web-based management Yes
Quality of Service (QoS) support Yes
Switch type Managed
Weight 456 g
Height 135 mm
Depth 87 mm
Width 32 mm
Port mirroring Yes
Networking standards IEEE 802.1x
Number of VLANs 4094
Full duplex Yes
Virtual LAN features Private VLAN
Spanning tree protocol Yes
10G support No
Auto MDI/MDI-X Yes
Copper ethernet cabling technology 1000BASE-T
MAC address auto-learning supported Yes
VLAN support Yes
MAC address auto-aging supported Yes
Flow control support Yes
Link aggregation Yes
Rate limiting Yes
Broadcast storm control Yes
console port RJ-45
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 4
Basic switching RJ-45 Ethernet ports quantity 4
Harmonized System (HS) code 85176990
Number of queues 8
Throughput 8.9 Mpps
Jumbo Frames support Yes
Jumbo frames 9000
MAC Address Table 8000 entries
Store-and-forward Yes
Switching capacity 12 Gbit/s
Power Over Ethernet (PoE) No
Multicast support Yes
Warnings Do not open the case or try to repair it yourself.
