Certification | CE, FCC, RoHS |
LED indicators | Yes |
Product colour | Black |
Power source | DC |
Power consumption (max) | 3.31 W |
Power supply included | Yes |
Input current | 0.6 A |
Input voltage | 9 V |
IGMP snooping | Yes |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Switch type | Unmanaged |
Quality of Service (QoS) support | Yes |
Depth | 101 mm |
Width | 158 mm |
Height | 25 mm |
Networking standards | IEEE 802.3x |
Auto MDI/MDI-X | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Auto-negotiation | Yes |
10G support | No |
Flow control support | Yes |
Full duplex | Yes |
Package width | 130 mm |
Package height | 92 mm |
Package depth | 191 mm |
User guide | Yes |
PACKAGE WEIGHT | 510 g |
Switching protocols | CSMA/CD |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

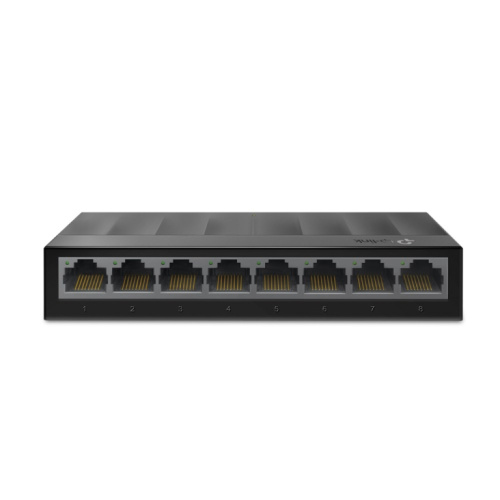

Gigabit Ethernet (copper) ports quantity | 8 |
Power connector | DC-in jack |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Packet transfer speed | 14880pps/148800pps/1488000pps |
Ethernet interface type | Gigabit Ethernet |
Connectivity Technology | Wired |
Ethernet LAN | Yes |
Wi-Fi | No |
Power LED | Yes |
Bandwidth | 16 Gbit/s |
Harmonized System (HS) code | 85176990 |
Store-and-forward | Yes |
Jumbo Frames support | Yes |
Maximum data transfer rate | 2 Gbit/s |
Jumbo frames | 16000 |
Packet buffer memory | 1.5 MB |
Supported data transfer rates | 10/100/1000Mbps |
MAC Address Table | 4000 entries |
Forwarding rate | 11.9 Mpps |
Switching capacity | 16 Gbit/s |
Power Over Ethernet (PoE) | No |
