Rack mounting | Yes |
Reset button | Yes |

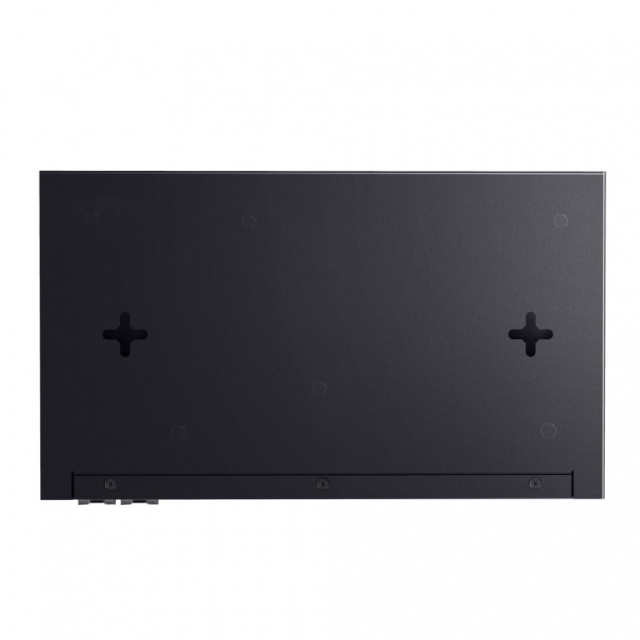

Wall mountable | Yes |
LED indicators | Yes |
Product colour | Black |
Form factor | Desktop/Wall-Mounting |
Power supply included | Yes |
Power source | AC |
Power consumption (max) | 180.1 W |
Authentication type | RADIUS |
DHCP features | DHCP relay |
Authentication | MAC-based authentication, Port-based authentication |
IGMP snooping | Yes |
Security algorithms | SNMPv3 |
Access Control List (ACL) | Yes |
Loop protection | Yes |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Heat dissipation | 614.58 BTU/h |
Storage temperature (T-T) | -40 - 70 °C |
Configuring Location Settings (CLI) | Yes |
Cloud-managed | Yes |
ARP inspection | Yes |
Switch layer | L2/L2+ |
System event log | Yes |
MIB support | Y |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
Switch type | Managed |
Height | 35 mm |
Depth | 131 mm |
Width | 226 mm |
Networking standards | IEEE 802.1Q |
Virtual LAN features | Tagged VLAN |
Number of VLANs | 4000 |
Link aggregation | Yes |
Rate limiting | Yes |
Spanning tree protocol | Yes |
Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Port mirroring | Yes |
VLAN support | Yes |
10G support | No |
Flow control support | Yes |
Broadcast storm control | Yes |
Quick start guide | Yes |
Compliance certificates | Federal Communications Commission (FCC) |
Power connector | AC/DC |
Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
Basic switching RJ-45 Ethernet ports quantity | 8 |
SFP+ module slots quantity | 2 |
Static route | Yes |
Jumbo frames | 9000 |
Jumbo Frames support | Yes |
Packet buffer memory | 9 MB |
Forwarding rate | 59.52 Mpps |
MAC Address Table | 16000 entries |
Switching capacity | 80 Gbit/s |
Total Power over Ethernet (PoE) budget | 160 W |
Power over Ethernet plus (PoE+) ports quantity | 8 |
Power Over Ethernet (PoE) | Yes |
Multicast support | Yes |
Warnings | Do not open the case or try to repair it yourself. |
Sustainability compliance | Yes |
