Product colour | Black |
LED indicators | Yes |

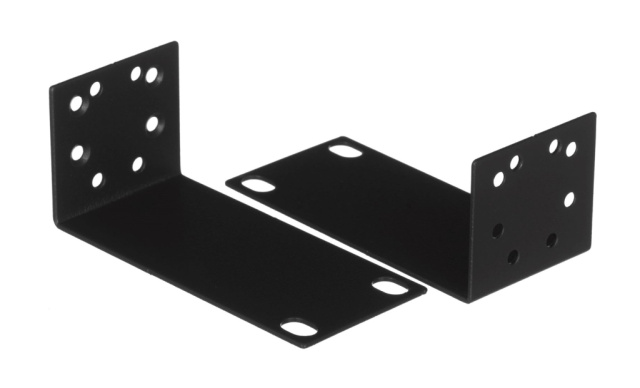

Rack mounting | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (typical) | 10.7 W |
SSH/SSL support | Yes |
DHCP features | DHCP client |
IGMP snooping | Yes |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Web-based management | Yes |
System event log | Yes |
Quality of Service (QoS) support | Yes |
Switch layer | L2 |
Switch type | Managed |
Depth | 200 mm |
Width | 294 mm |
Height | 44 mm |
Networking standards | IEEE 802.1x |
10G support | No |
Auto MDI/MDI-X | Yes |
Management protocols | SNMP, RMON, DHCP Client, BOOTP Client, DHCP Snooping, DHCP Option 82, CPU Monitoring, SNTP, NDP/NTDP |
SFP module slots quantity | 2 |
Power connector | DC-in jack |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Throughput | 14.9 Mpps |
MAC Address Table | 8000 entries |
Switching capacity | 20 Gbit/s |
Power Over Ethernet (PoE) | Yes |
Multicast support | Yes |
