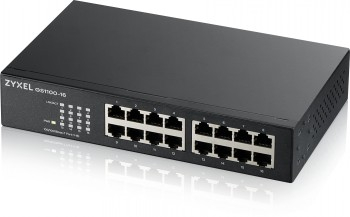

Zyxel GS1100-16 – 16-Port Gigabit Switch for Silent and Energy-Efficient Networking
- 16 ports with Gigabit connection for fast and stable data transfer
- Fanless design – ideal for quiet office and work environments
- Energy-saving features: traffic, link, and cable length detection
- Plug & play setup – no configuration or management needed
- Metal housing with included wall-mount kit
Powerful, Silent, and Eco-Friendly Gigabit Networking Solution
The Zyxel GS1100-16 is a 16-port unmanaged Gigabit switch designed for office environments that demand reliable performance and silent operation. With a completely fanless design, it’s perfect for noise-sensitive areas such as meeting rooms or under-desk installations.
Save Energy Without Compromising Performance
The GS1100-16 includes several green networking features such as IEEE 802.3az Energy Efficient Ethernet, which reduces power consumption based on network traffic. It also detects inactive links and cable length to adjust power usage automatically – reducing operating costs and environmental impact.
Fast and Reliable Connectivity for All Users
All 16 ports support full gigabit speeds (1000 Mbps), ensuring smooth data transfers for file servers, NAS devices, workstations, and IP-based services. With a switching capacity of up to 32 Gbps, the GS1100-16 prevents bottlenecks in your local network.
Technical Specifications
- 16 x 10/100/1000 Mbps RJ-45 ports
- Switching capacity: 32 Gbps
- Forwarding rate: 23.8 Mpps
- Packet buffer: 525 KB
- MAC address table: 8K
- Jumbo frame support: 9 KB
- Auto MDI/MDI-X, IEEE 802.1p CoS, VLAN pass-through
- Power consumption: max. 10 W
- Internal power supply (100–240 V AC)
- Fanless, completely silent operation
- Dimensions: 215 x 133 x 42 mm
- Weight: 0.9 kg
| Storage temperature range (T-T), °C | -40 - 70 |
| Operating temperature range (T-T), °C | 0 - 40 |
| MAC address table, entries | 8000 |
| Switch type | Unmanaged |
| Power consumption (max.), W | 10 |
| Ports quantity | 16 |
| Power over Ethernet (PoE) Support | No |
| Switching capacity, Gbit/s | 32 |
| Packet transfer speed | 28.8 |
| Ethernet LAN (RJ-45) ports quantity | 16 |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p |
| Broadcast storm control | Yes |
| Maximum data transfer rate, Gbit/s | 1 |
| Colour of product | Black |
| MAC address filtering | Yes |
| Safety | UL 60950-1, CSA 60950, EN 60950-1, IEC 60950-1, RoHS |
| LED indicators | Link activity, Port status, Power, System |
| Drive device, buffer size, MB | 0.256 |
| Networking Features | Gigabit Ethernet |
| Power requirements | 100 - 240 V AC, 50/60 Hz |
