data transmission | |
Maximum data transfer rate | 5000 Mbit/s |
Maximum possible transmission distance | 100000 m |
Antenna | |
antenna type | 2x2 |

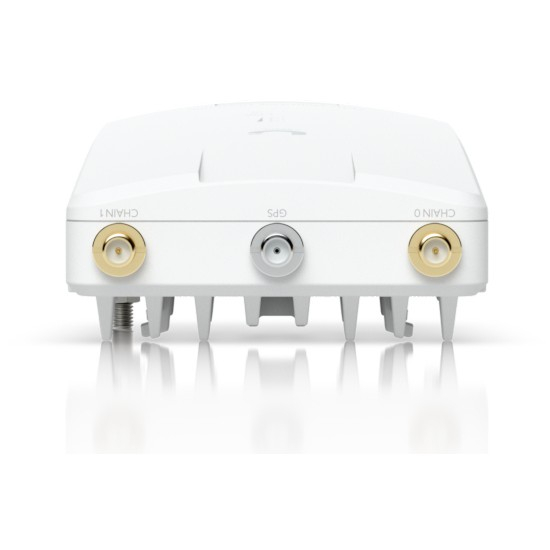

Antenna connector type | RP-SMA |
Wireless LAN functions | |
Eigenschaft | Power over Ethernet (PoE) |
WiFi band | Einzelband (5 GHz) |
Top WLAN-Standard | Wi-Fi 7 (802.11be) |
frequency band | 5.18 - 5.745 GHz |
Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, QPSK |
network | |
Interface type Ethernet LAN | 10 Gigabit Ethernet |
Ethernet LAN data transfer rates | 10,100,1000,10000 Mbit/s |
connections and interfaces | |
transmission technology | Verkabelt & Kabellos |

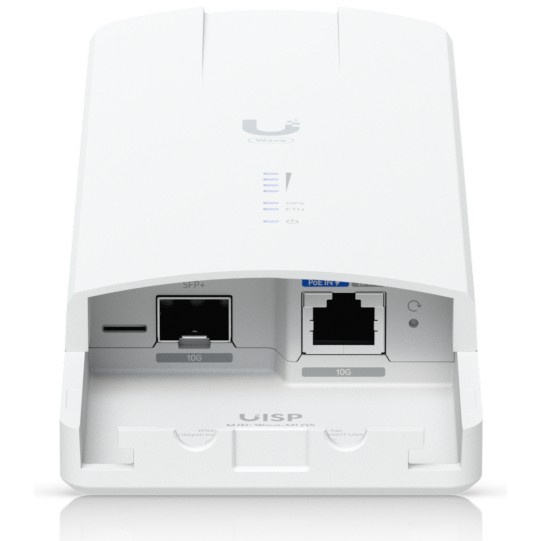

Number of Ethernet LAN ports (RJ-45) | 1 |
safety | |
Supported security algorithms | AES, WPA3-PSK |
features | |
product type | Netzwerkbrücke |
Material | Aluminium, Polycarbonat (PC) |

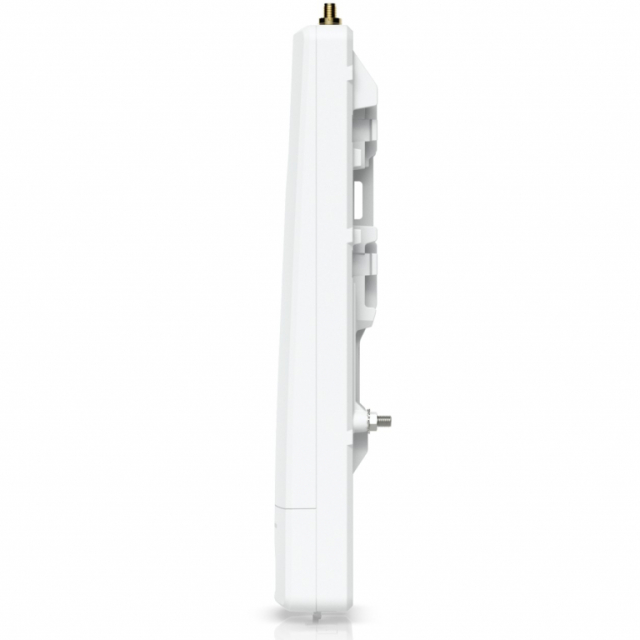

attachment type | Stange |
Product color | Weiß |
LED indicators | GPS, LAN, Leistung, Signalstärke, Status |
International degree of protection (IP code) | IPX6 |
processor family | ARM Cortex |
processor | Cortex-A53 |
processor clock speed | 1500 MHz |
processor manufacturer | ARM |
storage capacity | 1000 MB |
RAM type | DDR4 |
energy | |
energy source | PoE |
DC input voltage | 44 - 54 V |
Power consumption (max.) | 20 W |
operating conditions | |
operating temperatur | -40 - 60 °C |
temperature operating environment | -40 - 140 °F |
Operating relative humidity | 5 - 95% |
certificates | |
Konformitätsbescheinigungen | CE, Eidgenössische Kommunikationskommission (FCC), Industry Canada (IC) |
weight and dimensions | |
broad | 82 mm |
depth | 47,6 mm |
height | 249,3 mm |
Weight | 575 g |
quantity per pack | 1 Stück(e) |
