Receiver sensitivity | 2.4GHz:
1MBit/s: -100 @ 26dBm Tx
11MBit/s: -94 @ 26dBm Tx
6MBit/s: -96 @ 26dBm Tx
54MBit/s: -78 @ 23dBm Tx
MCS0: -96 @ 26dBm Tx
MCS7: -73 @ 22dBm Tx
5GHz:
6MBit/s: -96 @ 26dBm Tx
54MBit/s: -80 @ 21dBm Tx
MCS0: -96 @ 26dBm Tx
MCS7: -75 @ 20dBm Tx
MCS9: -70 @ 18dBm Tx |
Networking standards | IEEE 802.11g |
2.4 GHz | Yes |
Maximum data transfer rate (5 GHz) | 867 Mbit/s |
Frequency Band | 2.412 - 2.484, 5.15 - 5.875 GHz |
Maximum data transfer rate | 867 Mbit/s |
5 GHz | Yes |
Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
Ethernet LAN data rates | 100 Mbit/s |
Certification | CE, FCC, IC, EAC, ROHS |
Product colour | White |
Internal | No |
LED indicators | Yes |

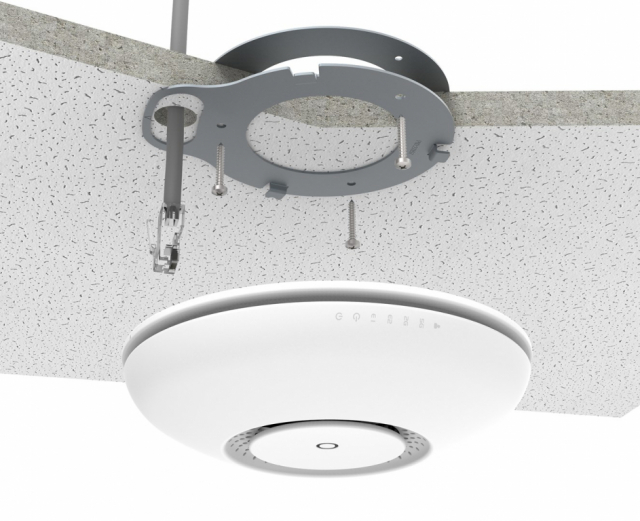

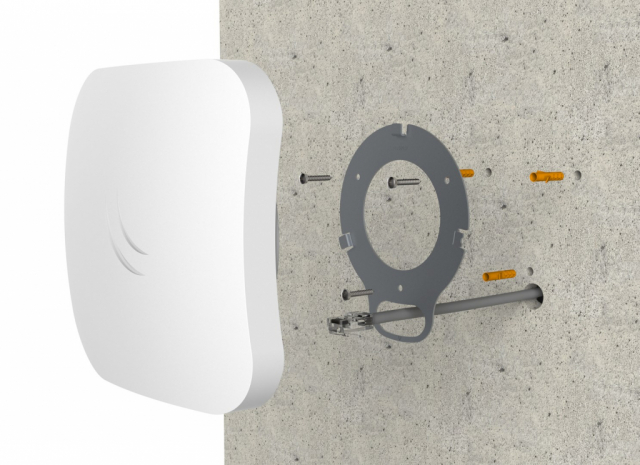

Placement | Ceiling, Wall |
Output voltage | 57 V |
Power Over Ethernet (PoE) | Yes |
Power consumption (max) | 13 W |
DC voltage range | 17 - 57 V |
Power over Ethernet (PoE) type supported | Passive PoE |
Operating temperature (T-T) | -40 - 50 °C |
Height | 136 mm |
Width | 136 mm |
Depth | 30 mm |
Operating system installed | RouterOS |
INTERNAL MEMORY | 128 MB |
Processor model | IPQ4018 |
Processor frequency | 716 MHz |
Flash Memory | 16 MB |
Built-in processor | Yes |
AC adapter included | Yes |
PoE adapter included | Yes |
Mounting Kit | Yes |
Ethernet LAN (RJ-45) ports | 2 |
Antenna type | Internal |
Antenna gain level (max) | 2.5 dBi |
Antennas quantity | 4 |
Antenna features | Integrated antenna |
Harmonized System (HS) code | 85176990 |
