| WAN connection | |
| Eigenschaft | Power over Ethernet (PoE) |
| Wireless LAN functions | |
| WiFi band | Tri-Band (2,4 GHz/5 GHz/6 GHz) |
| Top WLAN-Standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max.) | 5700 Mbit/s |
| WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 4300 Mbit/s |
| WLAN data transfer rate (1/3 octave band) | 5700 Mbit/s |
| network | |
| Interface type Ethernet LAN | 2.5 Gigabit Ethernet |
| Ethernet LAN data transfer rates | 2500 Mbit/s |
| mesh standard | IEEE 802.1Q |
| Maximum coverage | 160 m² |
| VPN-Server | Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP |
| Maximale Sendeleistung (2,4 GHz) | 23 dBmW |
| Maximale Sendeleistung (5 GHz) | 26 dBmW |
| connections and interfaces | |

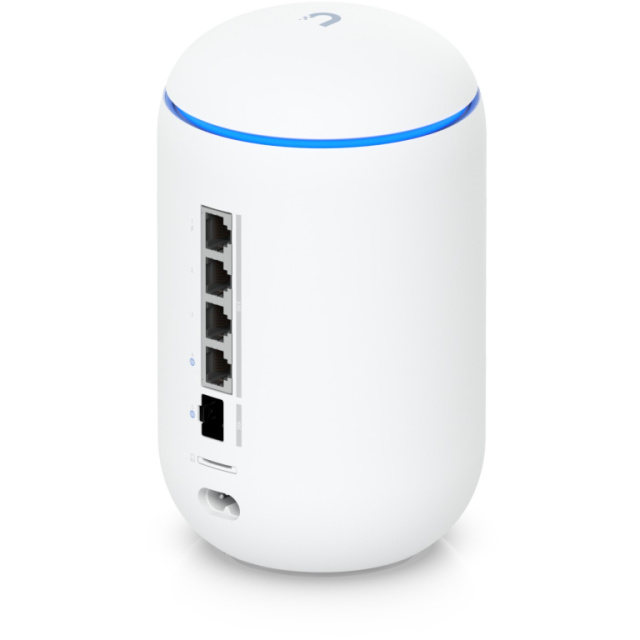

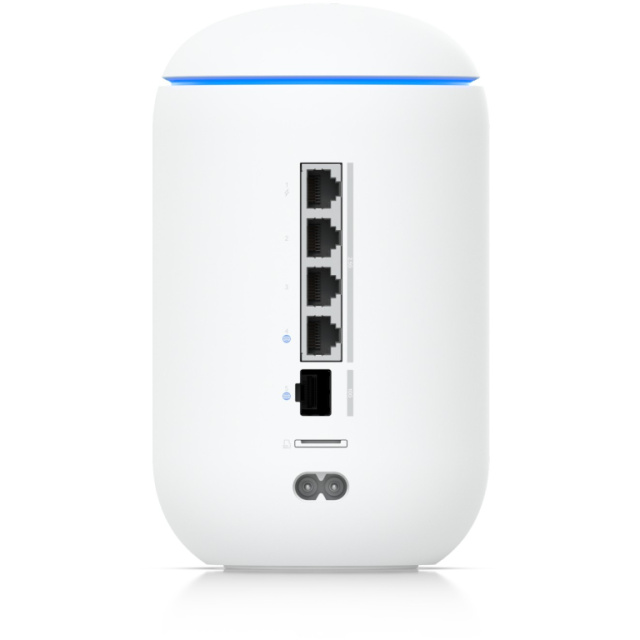

| Number of Ethernet LAN ports (RJ-45) | 4 |
| Compatible memory cards | MicroSD (TransFlash) |
| Optical cable connector | SFP+ |
| management functions | |
| safety | |
| Supported security algorithms | PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| MAC-Adressentabelle | 2000 Eintragungen |
| logs | |
| Router protocol | OSPF |
| Design | |
| Product color | Weiß |
| housing material | Polycarbonat (PC) |
| LED indicators | Status |
| Display-Typ | LCM |
| product type | Tabletop-Router |
| certificates | |
| Konformitätsbescheinigungen | CE, Eidgenössische Kommunikationskommission (FCC), Industry Canada (IC) |
| scope of delivery | |
| Supplied cables | AC |
| Antenna | |
| The Antenna Design | Intern |
| Antenna gain level (max) | 7 dBi |
| features | |
| processor architecture | ARM Cortex-A53 |
| processor clock speed | 1500 MHz |
| number of CPU cores | 4 |
| storage capacity | 3000 MB |
| Number of devices that can be connected simultaneously (max) | 300 |
| energy | |
| energy source | AC, PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standard operation) | 26 W |
| power supply | 50 W |
| Power over Ethernet (PoE) voltage | 57 V |
| operating conditions | |
| operating temperatur | -10 - 40 °C |
| Operating relative humidity | 5 - 95% |
| weight and dimensions | |
| broad | 110 mm |
| depth | 110 mm |
| height | 184,1 mm |
| Weight | 1,1 kg |
| Number of products included | 1 Stück(e) |
