WAN connection | |
Eigenschaft | Eingebauter Prozessor |
Wireless LAN functions | |
WiFi band | Dual-Band (2,4 GHz/5 GHz) |
Top WLAN-Standard | Wi-Fi 6 (802.11ax) |
WLAN data transfer rate (max.) | 2402 Mbit/s |
WLAN-Standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
network | |
Interface type Ethernet LAN | Gigabit Ethernet |
Ethernet LAN data transfer rates | 10,100,1000 Mbit/s |
wiring technology | 10/100/1000Base-T(X) |
mesh standard | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
mobile network | |
Cellular Network Generation | 5G |
4G-Standards | LTE |
4G LTE-Kategorie | 20 |
5G-Standard | Sub6 SA/NSA |
5G bands supported | 6000 MHz |
connections and interfaces | |

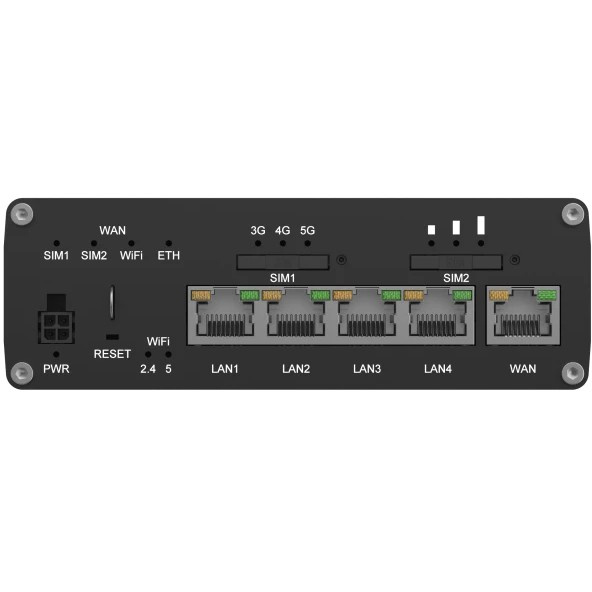

Number of Ethernet LAN ports (RJ-45) | 5 |
Number of USB 2.0 ports | 1 |
management functions | |
safety | |
Firewall | Port forward, traffic rules, custom rules |
logs | |
Router protocol | BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2 |
VoIP Protocol | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Design | |
Product color | Schwarz |
product type | Industrieller Router |

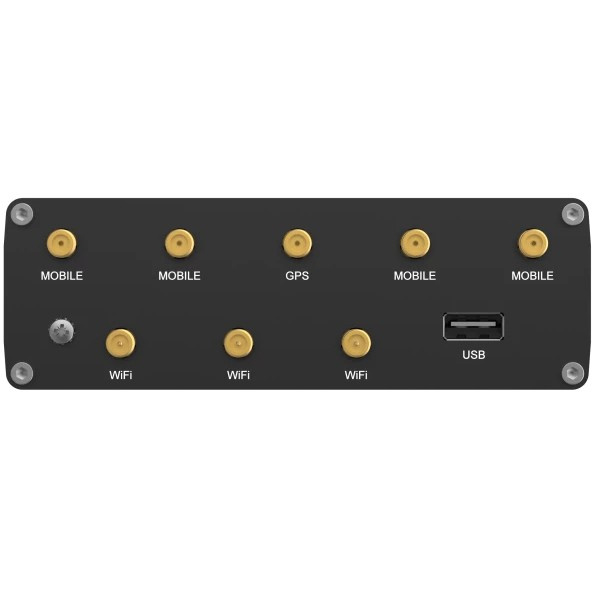

Antenna | |
The Antenna Design | Extern |
antenna type | 4x4 |
Antenna connector type | SMA |
features | |
processor manufacturer | MediaTek |
processor architecture | ARM Cortex-A53 |
processor clock speed | 1300 MHz |
storage capacity | 512 MB |
Internal storage type | DDR3 |
Flash memory | 512 MB |
Installed operating system | RutOS |
energy | |
energy source | Gleichstrom |
Power consumption (standard operation) | 4,5 W |
power plug type | Typ E |
operating conditions | |
operating temperatur | -40 - 75 °C |
Operating relative humidity | 10 - 90% |
weight and dimensions | |
broad | 130,4 mm |
depth | 103,4 mm |
height | 42,6 mm |
Weight | 452 g |
