Processor frequency | 1500 MHz |
Processor cores | 3 |
Flash Memory | 16 MB |
INTERNAL MEMORY | 256 MB |
Built-in processor | Yes |
Product colour | Black |
On/off switch | Yes |
Product Type | Tabletop router |
Output voltage | 12 V |
Power source type | AC |
Output current | 1 A |
Security algorithms | 128-bit WEP |
Guest access | Yes |
Firewall security | SPI |
DMZ support | Yes |
Firewall | Yes |
Reset button | Yes |
WPS push button | Yes |
Weight | 370 g |
Width | 260 mm |
Depth | 126 mm |
Height | 33 mm |
Receiver sensitivity | 5 GHz:
11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm
11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm
11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm |
Ethernet LAN data rates | 100 |
Networking standards | IEEE 802.11ax |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Dynamic DNS (DDNS) | Yes |
Port forwarding | Yes |
Mac operating systems supported | Yes |
Mac compatibility | Yes |
Windows operating systems supported | Windows 7 |
Linux operating systems supported | Yes |
Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
Package height | 38 mm |
Number of products included | 1 pc(s) |
PACKAGE WEIGHT | 780 g |
Package depth | 300 mm |
Package width | 124 mm |

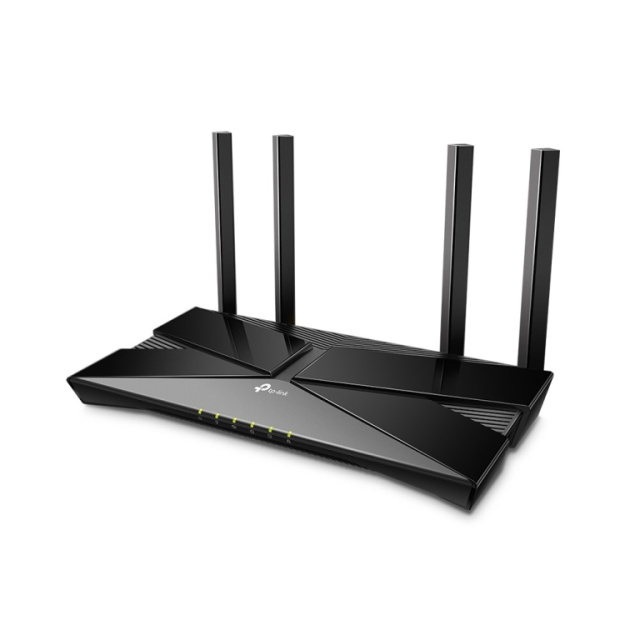

Packaging content | 1 x TP-Link Archer AX1500 Wi-Fi 6 Router, Black |
CABLES INCLUDED | LAN (RJ-45) |
Quick installation guide | Yes |
AC adapter included | Yes |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi standards | Wi-Fi 6 (802.11ax) |
WLAN data transfer rate (max) | 1500 Mbit/s |
WLAN data transfer rate (second band) | 1201 Mbit/s |
WLAN data transfer rate (first band) | 300 Mbit/s |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
DHCP client | Yes |
Supported network protocols | IPv4, IPv6 |
DHCP Server | Yes |
Universal Plug and Play (UPnP) | Yes |
DC-in jack | Yes |

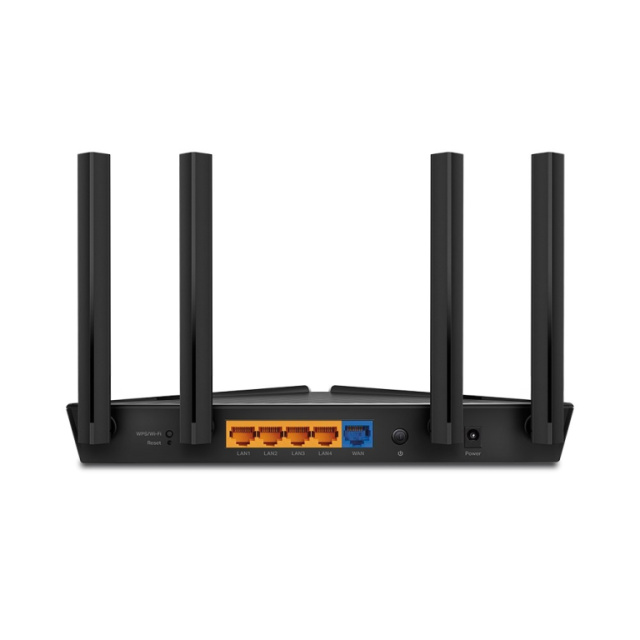

Ethernet LAN (RJ-45) ports | 4 |
USB Port | No |
Memory card slot(s) | No |
Antennas quantity | 4 |
Transmit power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz); FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
Antenna design | External |
Ethernet WAN | Yes |
3G/4G USB modem compatibility | No |
SIM card slot | No |
WAN connection type | RJ-45 |
DSL WAN | No |
Quantity per pack | 1 pc(s) |
Harmonized System (HS) code | 85176990 |
Warnings | Avoid contact with liquids as this may cause electric shock. |
