| Compliance certificates | Federal Communications Commission (FCC) |
| Processor frequency | 1500 MHz |
| Processor cores | 3 |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Product colour | Black |
| Product Type | Portable router |
| On/off switch | Yes |
| Output voltage | 12 V |
| Output current | 2.5 A |
| Power source type | DC |
| Stateful Packet Inspection (SPI) | Yes |
| Network address translation (NAT) | Yes |
| Security algorithms | WPA-Enterprise |
| Filtering | Yes |
| IP address filtering | Yes |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Parental control | Yes |
| Firewall | Yes |
| DoS attack prevention | Yes |
| DMZ support | Yes |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| MU-MIMO technology | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| WPS push button | Yes |
| Width | 272.5 mm |
| Height | 49.2 mm |
| Depth | 147.2 mm |
| Ethernet LAN data rates | 100 |
| Support Samba (storage) | Yes |
| Networking standards | IEEE 802.11ax |
| Ethernet LAN interface type | Gigabit Ethernet |
| Dynamic DNS (DDNS) | Yes |
| Built-in FTP server | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Port forwarding | Yes |
| Ethernet LAN | Yes |
| Port triggering | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Media server | Yes |
| PACKAGE WEIGHT | 800 g |
| Package width | 124 mm |
| Package height | 38 mm |
| Package depth | 310 mm |

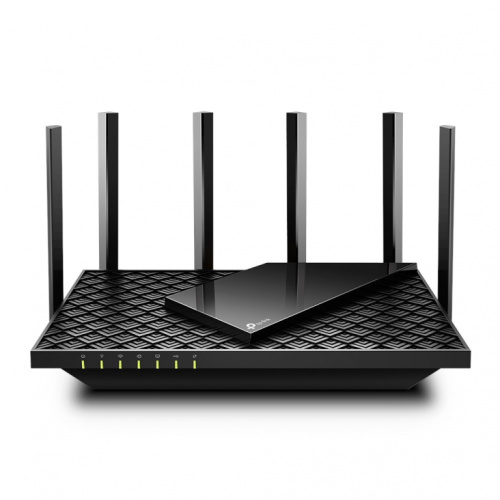

| Packaging content | 1 x TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black |
| CABLES INCLUDED | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Wi-Fi standards | 802.11a |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 5400 Mbit/s |
| WLAN data transfer rate (first band) | 4804 Mbit/s |
| Modulation | OFDM |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| DHCP client | Yes |
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |

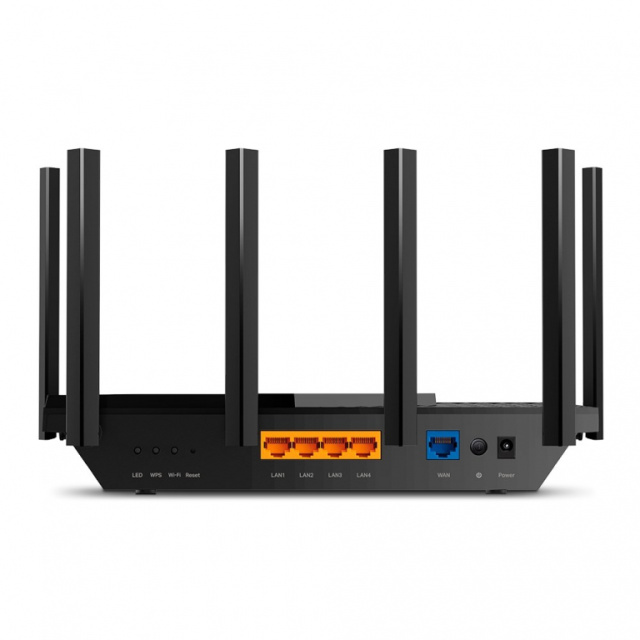

| Ethernet LAN (RJ-45) ports | 4 |
| USB Port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Antennas quantity | 6 |
| Antenna design | External |
| WAN connection type | RJ-45 |
| SIM card slot | No |
| DSL WAN | No |
| 3G/4G USB modem compatibility | No |
| Ethernet WAN | Yes |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Sustainability compliance | Yes |
