WAN connection | |
Eigenschaft | Unterstützt Mac-Betriebssysteme |
WAN connection type | RJ-45 |
Wireless LAN functions | |
WiFi band | Dual-Band (2,4 GHz/5 GHz) |
Top WLAN-Standard | Wi-Fi 6 (802.11ax) |
WLAN data transfer rate (max.) | 1201 Mbit/s |
WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
WLAN data transfer rate (first band) | 574 Mbit/s |
WLAN data transfer rate (second band) | 1201 Mbit/s |
Modulation | 1024-QAM |
network | |
Interface type Ethernet LAN | Gigabit Ethernet |
Ethernet LAN data transfer rates | 10,100,1000 Mbit/s |
Number of guest networks (2.4 GHz) | 1 |
Number of guest networks (5 GHz) | 1 |
VPN support | PPTP VPN, IPSec VPN , OpenVPN |
mobile network | |
Cellular Network Generation | 5G |
3G standards | DC-HSDPA, HSPA, HSPA+, UMTS |
4G-Standards | LTE-TDD & LTE-FDD |
5G bands supported | 700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz |
Supported UMTS bandwidths | 850,900,2100 MHz |
supported 4G bandwidths | 700,800,850,900,1500,1800,2100,2300,2500,2600,3500,3700 MHz |
SIM card type | NanoSIM |
connections and interfaces | |

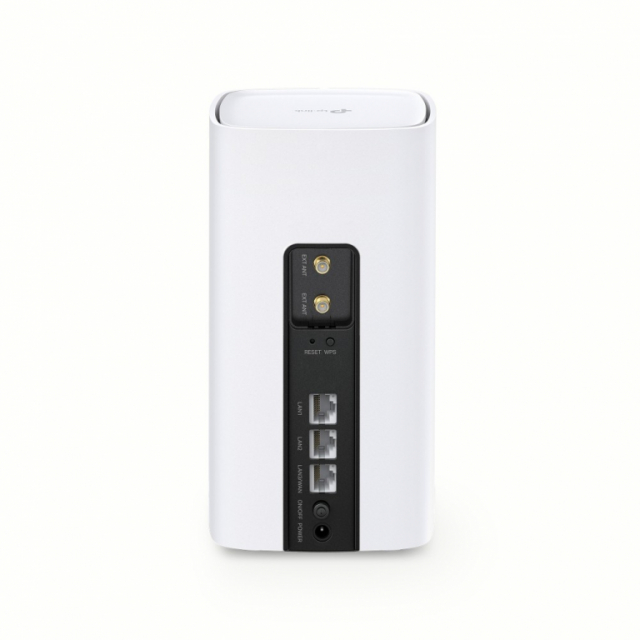

Number of Ethernet LAN ports (RJ-45) | 3 |
management functions | |
safety | |
Supported security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Firewall | IPv4 SPI Firewall, IPv6 Firewal |
logs | |
Supported network protocols | IPv4, IPv6 |
Design | |
Product color | Weiß |
product type | Tabletop-Router |
certificates | |
Konformitätsbescheinigungen | CE, RoHS |
scope of delivery | |
Supplied cables | LAN (RJ-45) |
Antenna | |
The Antenna Design | Intern |
number of antennas | 10 |
energy | |
energy source | AC |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
output voltage | 12 V |
output current | 2 A |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -40 - 70 °C |
Operating relative humidity | 10 - 90% |
humidity during storage | 5 - 90% |
system requirement | |
Supported browser | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
Supports Windows operating systems | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
weight and dimensions | |
broad | 99 mm |
depth | 99 mm |
height | 190 mm |
