| WAN connection | |
| Eigenschaft | Rack-Einbau |
| WAN connection type | RJ-45 |
| Wireless LAN functions | |
| WiFi band | Einzelband (2,4GHz) |
| Top WLAN-Standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max.) | 300 Mbit/s |
| WLAN-Standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| network | |
| Interface type Ethernet LAN | Schnelles Ethernet |
| Ethernet LAN data transfer rates | 10,100 Mbit/s |
| wiring technology | 10/100Base-T(X) |
| mesh standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Number of guest networks (2.4 GHz) | 1 |
| VPN-Server | PPTP VPN, IPSec VPN , OpenVPN |
| VPN support | PPTP, L2TP, IPSec |
| mobile network | |
| Cellular Network Generation | 4G |
| 2G-Standards | Edge, GPRS, GSM |
| 3G standards | HSPA+, UMTS |
| 4G-Standards | LTE |
| Supported GSM bandwidths | 850,900,1800,1900 MHz |
| supported 4G bandwidths | 800,900,1800,1900 MHz |
| supported 3G bandwidths | 900,2100 MHz |
| connections and interfaces | |

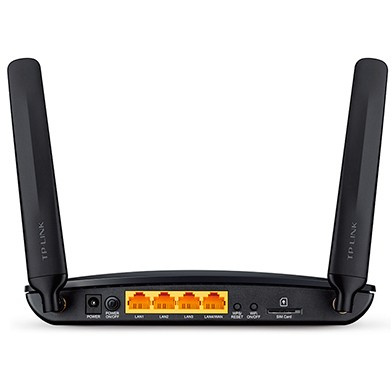

| Number of Ethernet LAN ports (RJ-45) | 4 |
| management functions | |
| safety | |
| Supported security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | DoS, SPI Firewall, IP and MAC Address Binding |
| logs | |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product color | Schwarz |
| product type | Tabletop-Router |
| certificates | |
| certification | CE, FCC, RoHS |
| scope of delivery | |
| Supplied cables | LAN (RJ-45) |
| Antenna | |
| The Antenna Design | Intern & extern |
| number of antennas | 4 |
| energy | |
| energy source | Gleichstrom |
| output voltage | 12 V |
| output current | 1 A |
| operating conditions | |
| operating temperatur | 0 - 40 °C |
| Storage temperature range | -40 - 70 °C |
| Operating relative humidity | 10 - 90% |
| humidity during storage | 5 - 90% |
| system requirement | |
| Supports Windows operating systems | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Supports Mac operating systems | macOS |
| weight and dimensions | |
| broad | 202 mm |
| depth | 141 mm |
| height | 33,5 mm |
| package weight | 600 g |
| logistic data | |
| Goods tariff number (HS) | 85176990 |
| Other functions | |
| Data transfer speed WiFi | 11,54,300 Mbit/s |
| bandwidth (first) | 2,4 GHz |
| Supporting WAN Type | RJ-45SIM |
| frequency band | 2.4 GHz |
