connections and interfaces | |
transmission technology | Kabellos |
host interface | PCI Express |
interface | WLAN |
network | |
Maximum data transfer rate | 150 Mbit/s |
mesh standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Eigenschaft | Schnellinstallationsanleitung |
WiFi band | Einzelband (2,4GHz) |
frequency range | 2,4 - 2,4835 GHz |
WLAN-Standards | 802.11b, 802.11g |
Data transfer speed WiFi | 11,54,150 Mbit/s |
Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
Supported security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
Design | |
Product color | Grün |

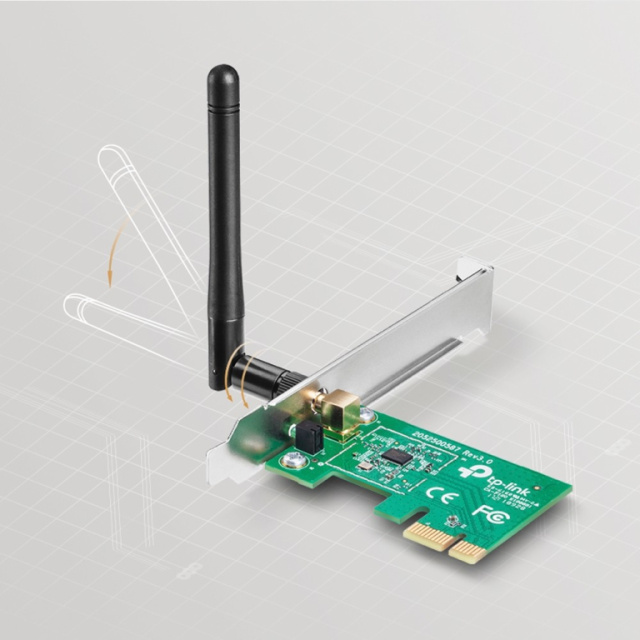

The Antenna Design | Extern |
Antennenrichtungsart | Mit kugelförmiger Richtcharakteristik |
Antenna gain level (max) | 2 dBi |
chipset | Atheros |
Betriebsmodi | Infrastrukturmodus |
system requirement | |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -40 - 70 °C |
Operating relative humidity | 10 - 90% |
humidity during storage | 5 - 90% |
sustainability | |
weight and dimensions | |
broad | 120,8 mm |
depth | 78,5 mm |
height | 21,5 mm |
package weight | 150 g |
scope of delivery | |
Technical details | |
Konformitätsbescheinigungen | RoHS, Eidgenössische Kommunikationskommission (FCC), CE |
logistic data | |
Goods tariff number (HS) | 85176990 |
