| connections and interfaces | |
| transmission technology | Kabellos |
| host interface | PCI Express |
| interface | WLAN |
| network | |
| Maximum data transfer rate | 300 Mbit/s |
| mesh standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Eigenschaft | Schnellinstallationsanleitung |
| WiFi band | Einzelband (2,4GHz) |
| frequency range | 2,4 - 2,4835 GHz |
| Top WLAN-Standard | Wi-Fi 4 (802.11n) |
| WLAN-Standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Data transfer speed WiFi | 11,54,150,300 Mbit/s |
| Modulation | 16-QAM, 64-QAM, DBPSK, DQPSK, OFDM |
| Supported security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS |
| Design | |
| component for | PC |
| Product color | Grün |

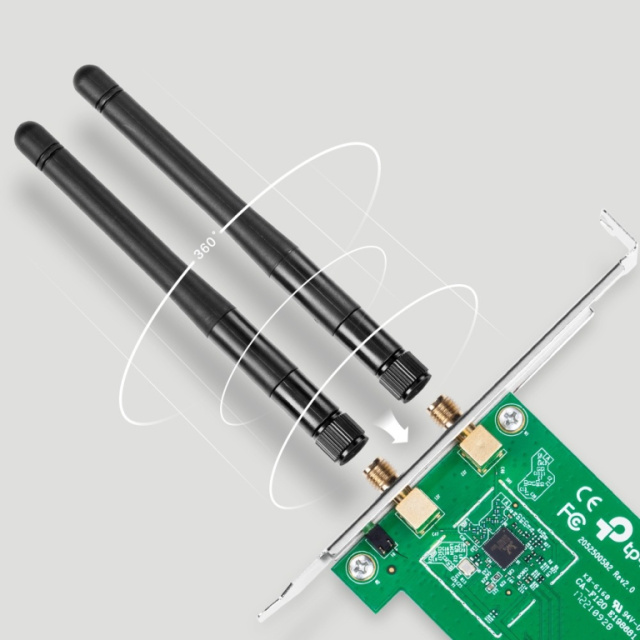

| The Antenna Design | Extern |
| Antenna connector type | RP-SMA |
| Antennenrichtungsart | Mit kugelförmiger Richtcharakteristik |
| Antenna gain level (max) | 2 dBi |
| Betriebsmodi | Infrastrukturmodus |
| system requirement | |
| operating conditions | |
| operating temperatur | 0 - 40 °C |
| Storage temperature range | -40 - 70 °C |
| Operating relative humidity | 10 - 90% |
| humidity during storage | 5 - 90% |
| sustainability | |
| weight and dimensions | |
| broad | 59,7 mm |
| depth | 51 mm |
| height | 3,3 mm |
| package weight | 170 g |
| scope of delivery | |
| Technical details | |
| Konformitätsbescheinigungen | RoHS, Eidgenössische Kommunikationskommission (FCC), CE |
| logistic data | |
| Goods tariff number (HS) | 85176990 |
