Processor cores | 4 |
Processor frequency | 2.6 MHz |
Firmware upgradeable | Yes |
Flash Memory | 256 MB |
Built-in processor | Yes |
INTERNAL MEMORY | 1000 MB |
Product colour | Black |

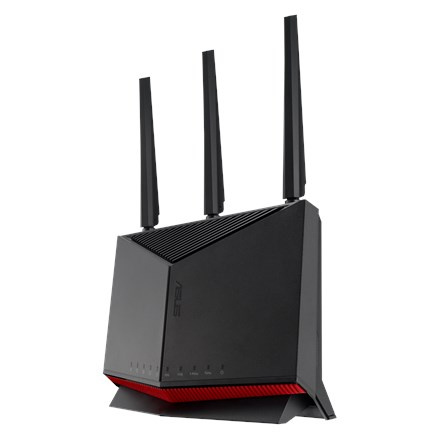

Product Type | Tabletop router |
LED indicators | LAN, Power, WAN |
On/off switch | Yes |
Indication light | Yes |
Output voltage | 12 V |
AC input frequency | 50/60 Hz |
Power source type | DC |
Output current | 5 A |
AC input voltage | 110 - 240 V |
NAT functionality | PPTP Pass-Through
L2TP Pass-Through
IPSec Pass-Through
RTSP Pass-Through
H.323 Pass-Through
SIP Pass-Through
PPPoE Relay |
Network address translation (NAT) | Yes |
MAC Address Table | 64 entries |
Parental control | Yes |
DMZ support | Yes |
Security algorithms | WPA2-Enterprise |
MAC address filtering | Yes |
Firewall | Yes |
Guest access | Yes |
URL filtering | Yes |
Filtering | Yes |
Intelligent Mesh technology | Yes |
Web-based management | Yes |
WPS push button | Yes |
Wake-on-LAN ready | Yes |
Quality of Service (QoS) support | Yes |
MU-MIMO technology | Yes |
Bandwidth control | Yes |
Reset button | Yes |
Height | 316 mm |
Width | 235 mm |
Weight | 854 g |
Depth | 90 mm |
VPN support | Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark |
Ethernet LAN interface type | 10 Gigabit Ethernet |
Dynamic DNS (DDNS) | Yes |
Port triggering | Yes |
Ethernet LAN data rates | 1000 Mbit/s |
Port forwarding | Yes |
Networking standards | IEEE 802.11be |
VPN server | VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard |
Ethernet LAN | Yes |
Media server | Yes |
Support Samba (storage) | Yes |
Package Type | Box |
Packaging content | RT-BE86U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card |
AC adapter included | Yes |
Quick start guide | Yes |
CABLES INCLUDED | LAN (RJ-45) |
Warranty card | Yes |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
WLAN data transfer rate (second band) | 5764 Mbit/s |
Wi-Fi standards | 802.11g |
WLAN data transfer rate (max) | 5764 Mbit/s |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
WLAN data transfer rate (first band) | 1032 Mbit/s |
DHCP Server | Yes |
Ethernet LAN (RJ-45) ports | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 2.0 ports quantity | 1 |
USB Port | Yes |
DC-in jack | Yes |
Antenna design | Internal & external |
Antennas quantity | 4 |
Ethernet WAN | Yes |
3G/4G USB modem compatibility | No |
DSL WAN | No |
SIM card slot | No |
WAN connection type | RJ-45 |
