Built-in processor | Yes |
Processor manufacturer | Realtek |
Product colour | Black |
Built-in Display | No |
Housing material | Acrylonitrile butadiene styrene (ABS), Plastic, Polycarbonate (PC) |
Indication light | Yes |
On/off switch | Yes |

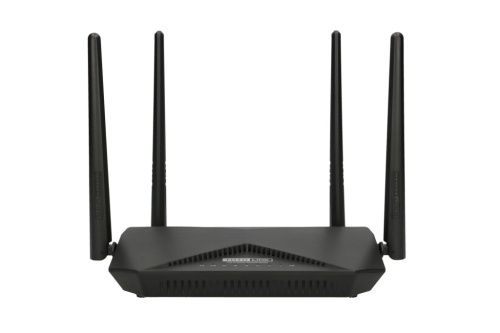

Product Type | Tabletop router |
LED indicators | LAN, System, USB, WAN, WLAN |
External power adapter | Yes |
Power source type | DC |
Output voltage | 12 V |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power Over Ethernet (PoE) | No |
Output current | 1 A |
Power consumption (typical) | 12 W |
Power supply | 12 W |
Security algorithms | WPA |
Operating relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | 0 - 50 °C |
Storage relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -40 - 70 °C |
Web-based setup wizard | Yes |
Web-based management | Yes |
WPS push button | Yes |
MU-MIMO technology | Yes |
Reset button | Yes |
Quality of Service (QoS) support | Yes |
Height | 40 mm |
Depth | 120 mm |
Width | 210 mm |
Receiver sensitivity | - 2.4G:11b 11M:-81dBm@8% PER
11g 54M:-68dBm@10% PER
11n HT20 MCS7:-65dBm@10% PER
HT40 MCS7:-62dBm@10% PER
- 5G: 11a 54M:-68dBm@10% PER
11n HT20 MCS7:-65dBm@10% PER
HT40 MCS7:-62dBm@10% PER
11ac VHT80 MCS9:-51dBm@10% PER |
Ethernet LAN data rates | 10 |
Networking standards | IEEE 802.11b |
Ethernet LAN | Yes |
Cabling technology | 10/100/1000Base-T(X) |
Port forwarding | Yes |
Ethernet LAN interface type | Gigabit Ethernet |
Package Type | Box |
CABLES INCLUDED | DC |
Quick installation guide | Yes |
AC adapter included | Yes |
Warranty card | Yes |
WLAN data transfer rate (second band) | 867 Mbit/s |
Wi-Fi standards | 802.11b |
WLAN data transfer rate (max) | 1167 Mbit/s |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
WLAN data transfer rate (first band) | 300 Mbit/s |
Universal Plug and Play (UPnP) | Yes |
DHCP client | Yes |
DHCP Server | Yes |
DC-in jack | Yes |
Ethernet LAN (RJ-45) ports | 4 |
USB Port | Yes |
USB 2.0 ports quantity | 1 |
Antenna design | External |
Detachable antenna(s) | Yes |
Antennas quantity | 4 |
Antenna gain level (max) | 5 dBi |
Ethernet WAN | Yes |
3G/4G USB modem compatibility | Yes |
DSL WAN | No |
SIM card slot | No |
WAN connection type | RJ-45 |
