features | |
Eigenschaft | LED-Anzeigen |
Maximum data transfer rate | 2133 Mbit/s |
Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
Maximum data transfer rate (5 GHz) | 1733 Mbit/s |
Ethernet LAN data transfer rates | 10,100,1000 Mbit/s |
mesh standard | IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3at |
Channel spacing | 80 MHz |
MIMO-Type | Multi User MIMO |
Spread-Spectrum Methode | DSSS, OFDM |
Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK |
Dateneinheit-Aggregation | A-MPDU, A-MSDU |
transmission performance | 28 dBmW |
safety | |
Supported security algorithms | AES, EAP-AKA, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, SNMP, SNMPv3, WPA-TKIP, WPA2, WPA2-Enterprise |
Features Service Set Identifier (SSID) | SSID-Übertragung ein/aus |
Anzahl der SSID-Unterstützung | 16 |
logs | |
connections and interfaces | |
Number of Ethernet LAN ports (RJ-45) | 2 |
Number of USB 2.0 ports | 2 |
energy | |
Power consumption (standard operation) | 18 W |
Power consumption (max.) | 24,6 W |
Design | |

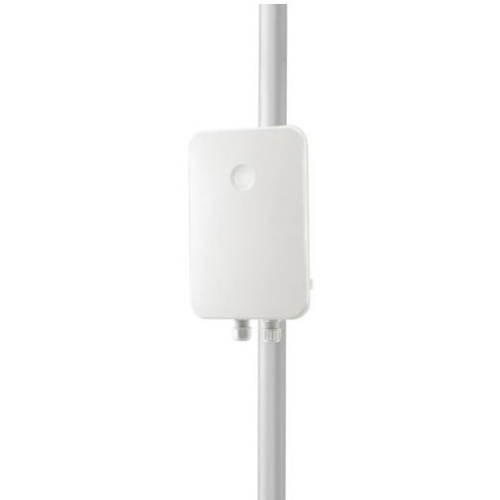

placement | Stange, Wand |
Product color | Weiß |
International degree of protection (IP code) | IP67 |
Lock-Type Cable Barrier | Kensington |
certification | FCC, CE, IC, UL, ETSI, RoHS, WEEE |
Antenna | |
antenna type | Intern |
antenna functions | Integrierte Antenne |
number of antennas | 2 |
Antenna gain level (max) | 8 dBi |
weight and dimensions | |
broad | 215 mm |
depth | 66 mm |
height | 315 mm |
Weight | 1,7 kg |
scope of delivery | |
Number of products included | 1 Stück(e) |
operating conditions | |
Operating relative humidity | 0 - 95% |
operating temperatur | -40 - 65 °C |
logistic data | |
Goods tariff number (HS) | 85176990 |
