Networking standards | IEEE 802.3 |
Ethernet LAN data rates | 10 |
Maximum data transfer rate | 867 Mbit/s |
Modulation | QPSK |
Spread Spectrum Method | DSSS |
5 GHz | Yes |
Transmitting power | 23 dBmW |
DESPITE | Yes |
Frequency Band | 2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
2.4 GHz | Yes |
MIMO type | Multi User MIMO |
Quality of Service (QoS) support | Yes |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
Fit AP mode features | Mesh networking |
Maximum data transfer rate (5 GHz) | 867 Mbit/s |
Virtual LAN features | Tagged VLAN |
VLAN support | Yes |
Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
Product colour | White |
LED indicators | Yes |
Placement | Pole, Wall |
Power Over Ethernet (PoE) | Yes |
Power consumption (max) | 12.6 W |
MAC address filtering | Yes |
Security algorithms | SSH |
Service Set Identifier (SSID) features | Multiple SSIDs |
Number of SSID supported | 8 |
Storage temperature (T-T) | -40 - 80 °C |
Operating temperature (T-T) | -20 - 60 °C |
Weight | 829.5 g |
Height | 30.3 mm |
Depth | 173.6 mm |
Width | 111.2 mm |
Quick start guide | Yes |
Mounting Kit | Yes |
Management protocols | SNMP |

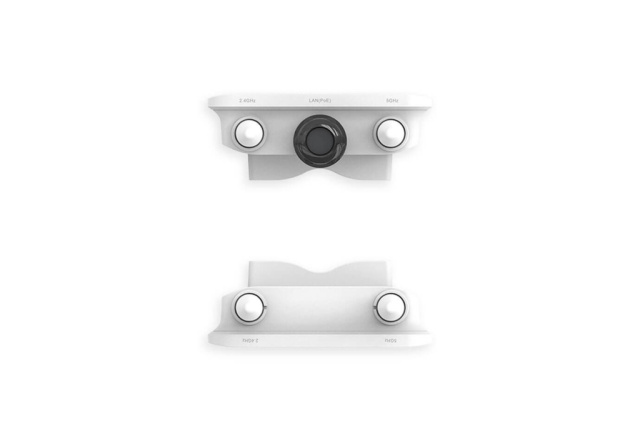

Ethernet LAN (RJ-45) ports | 1 |
Number of connectors | 4 |
Antenna Connector Type | SMA |
Antenna type | External |
Antenna gain level (max) | 5 dBi |
Antenna features | Integrated antenna |
Antennas quantity | 4 |
Antenna direction type | Omni-directional |
Harmonized System (HS) code | 85176990 |
