Ethernet LAN data rates | 10 |
2.4 GHz | Yes |
DESPITE | Yes |
Quality of Service (QoS) support | Yes |
Maximum data transfer rate | 1201 Mbit/s |
Networking standards | IEEE 802.11b |
5 GHz | Yes |
Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
VLAN support | Yes |
6 GHz | No |
Maximum indoor range | 100 m |
Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
Product colour | White |
LED indicators | Status |

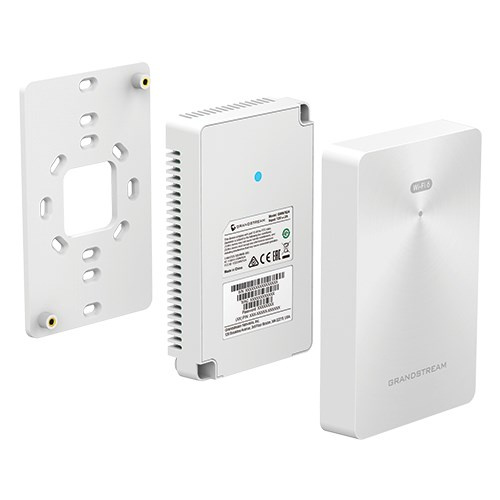

Placement | Wall |
Power Over Ethernet (PoE) | Yes |
Power consumption (max) | 9 W |
Security algorithms | WPA2-PSK |
Number of SSID supported | 32 |
Storage temperature (T-T) | -30 - 60 °C |
Operating temperature (T-T) | -10 - 50 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight | 185 g |
Width | 86 mm |
Depth | 135 mm |
Height | 38.5 mm |
Package depth | 176 mm |
PACKAGE WEIGHT | 400 g |
Package width | 118.5 mm |
Package height | 65 mm |
Supported network protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |

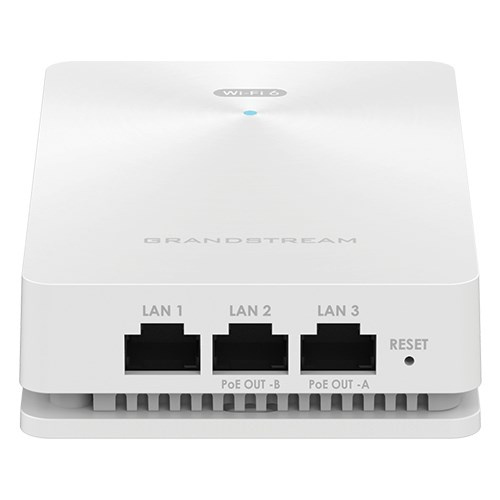

Ethernet LAN (RJ-45) ports | 3 |
Antenna gain level (max) | 5.37 dBi |
Antenna type | Internal |
