Receiver sensitivity | 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER |
Ethernet LAN data rates | 100 |
2.4 GHz | Yes |
Frequency Band | 2.4 - 2.4835 GHz |
5 GHz | No |
Maximum data transfer rate | 300 Mbit/s |
Networking standards | IEEE 802.1x |
Transmitting power (CE) | 19 dBm |
Cabling technology | 10/100Base-T(X) |
Quality of Service (QoS) support | Yes |
VLAN support | Yes |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
Transmitting power (FCC) | 21 dBm |
Virtual LAN features | VLAN mapping |
Wireless isolation | Yes |
Rate limiting | Yes |
6 GHz | No |
LED indicators | Power |
Product colour | White |
Reset button | Yes |
Placement | Ceiling, Wall |
AC input voltage | 24 V |
Power consumption (typical) | 2.8 W |
Power over Ethernet (PoE) type supported | Passive PoE |
Power Over Ethernet (PoE) | Yes |
MAC address filtering | Yes |
Service Set Identifier (SSID) features | Multiple SSIDs |
Number of SSID supported | 8 |
Access Control List (ACL) | Yes |
Security algorithms | 128-bit WEP |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Web-based management | Yes |
Syslog | Yes |
Width | 189.5 mm |
Height | 29.7 mm |
Depth | 170.5 mm |
Package depth | 268 mm |
Package height | 69 mm |
Package Type | Box |
Package width | 246 mm |
PACKAGE WEIGHT | 720 g |
Number of products included | 1 pc(s) |
Quick start guide | Yes |
Mounting Kit | Yes |
PoE adapter included | Yes |
CABLES INCLUDED | AC |

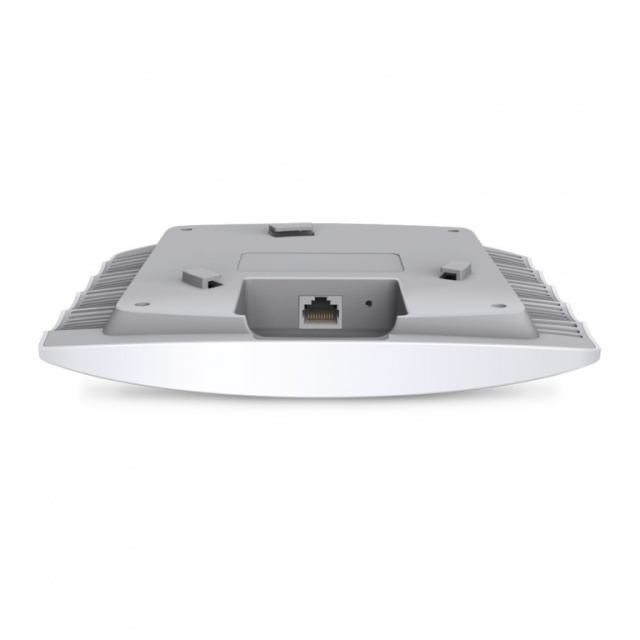

Ethernet LAN (RJ-45) ports | 1 |
Antenna type | Internal |
Antenna direction type | Omni-directional |
Antennas quantity | 2 |
Antenna gain level (max) | 4 dBi |
Harmonized System (HS) code | 85176990 |
Sustainability certificates | Federal Communications Commission (FCC) |
Sustainability compliance | Yes |
