Frequency Band | 2.4 - 5 GHz |
Ethernet LAN data rates | 1000 |
Networking standards | IEEE 802.11ac |
2.4 GHz | Yes |
DESPITE | Yes |
Maximum data transfer rate | 1167 Mbit/s |
5 GHz | Yes |
VLAN support | Yes |
Maximum data transfer rate (5 GHz) | 867 Mbit/s |
Cabling technology | 10/100/1000Base-T(X) |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
Wireless isolation | Yes |
Virtual LAN features | Port-based VLAN |
Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
Rate limiting | Yes |
Quality of Service (QoS) support | Yes |
MIMO type | Multi User MIMO |
Automatic channel selection | Yes |
Automatic channel scanning | Yes |
Band steering | Yes |
Transmitting power (FCC) | 21 dBm |
6 GHz | No |
BeamForming | Yes |
Transmitting power (CE) | 20 - 23 dBm |
Reset button | Yes |
Cable lock slot | Yes |
Product colour | White |
Placement | Wall |
LED indicators | Status |

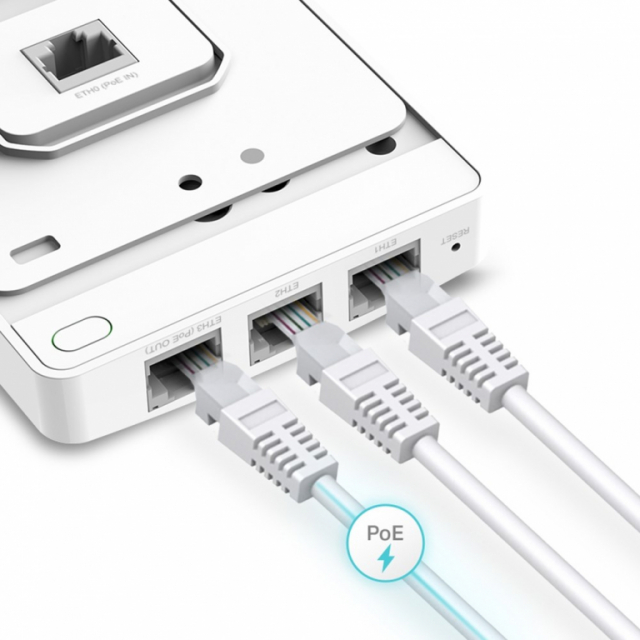

Power Over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) type supported | Passive PoE |
Power consumption (typical) | 24.4 W |
MAC address filtering | Yes |
Security algorithms | WPA2-PSK |
Remote Authentication Dial-In User Service (RADIUS) | Yes |
Number of SSID supported | 16 |
Service Set Identifier (SSID) features | Multiple SSIDs |
Access Control List (ACL) | Yes |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Web-based management | Yes |
Syslog | Yes |
Depth | 86 mm |

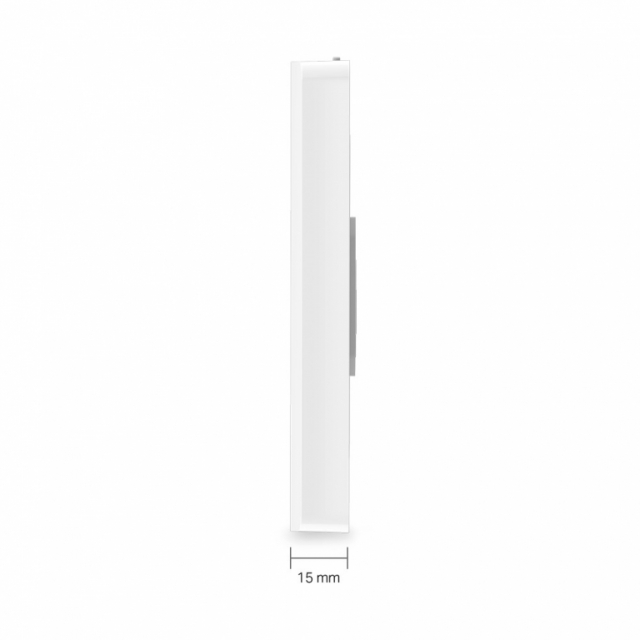

Height | 20 mm |
Width | 143 mm |
Package Type | Box |
Package height | 33 mm |
Package width | 117 mm |
Package depth | 184 mm |
PACKAGE WEIGHT | 300 g |
Mounting Kit | Yes |
Quantity per pack | 1 pc(s) |
Quick start guide | Yes |
Compliance certificates | RoHS |
Universal Plug and Play (UPnP) | Yes |
WAN connection | Ethernet (RJ-45) |
Ethernet LAN (RJ-45) ports | 4 |
Antenna type | Internal |
Antennas quantity | 2 |
Antenna features | Integrated antenna |
Antenna gain level (max) | 4 dBi |
Harmonized System (HS) code | 85176990 |
Sustainability compliance | Yes |
