Cabling technology | 10/100/1000Base-T(X) |
Number of users | 100 user(s) |
Ethernet LAN data rates | 10 |
Transmitting power (CE) | 20 - 23 - 26 dBm |
BeamForming | Yes |
Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
Networking standards | IEEE 802.1x |
5 GHz | Yes |
Transmitting power (FCC) | 21 - 21 dBm |
6 GHz | No |
Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
Maximum data transfer rate | 2402 Mbit/s |
Automatic channel selection | Yes |
Rate limiting | Yes |
Frequency Band | 2.4, 5 GHz |
Wireless isolation | Yes |
Band steering | Yes |
Airtime Fairness (ATF) | Yes |
Quality of Service (QoS) support | Yes |
2.4 GHz | Yes |
VLAN support | Yes |
Certification | FCC, RoHS |
Reset button | Yes |

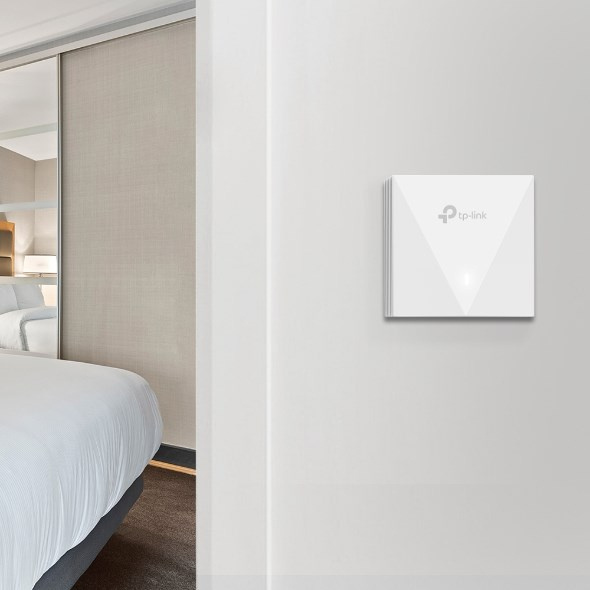

Placement | Wall |
Product colour | White |
LED indicators | Yes |
Cable lock slot | No |
Power consumption (typical) | 12 W |

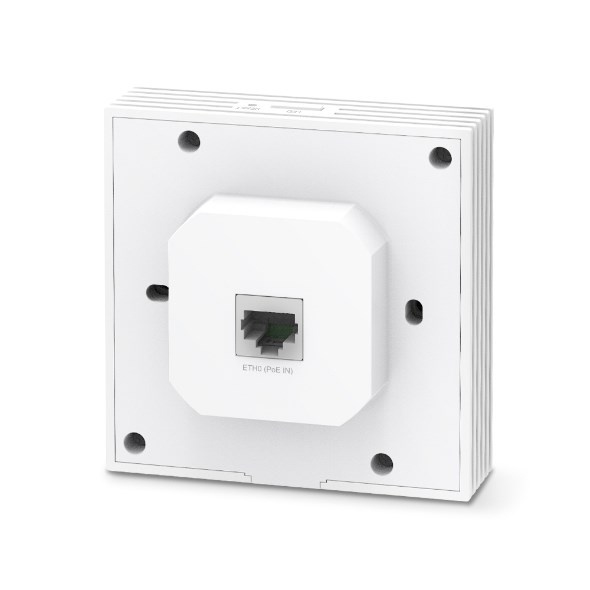

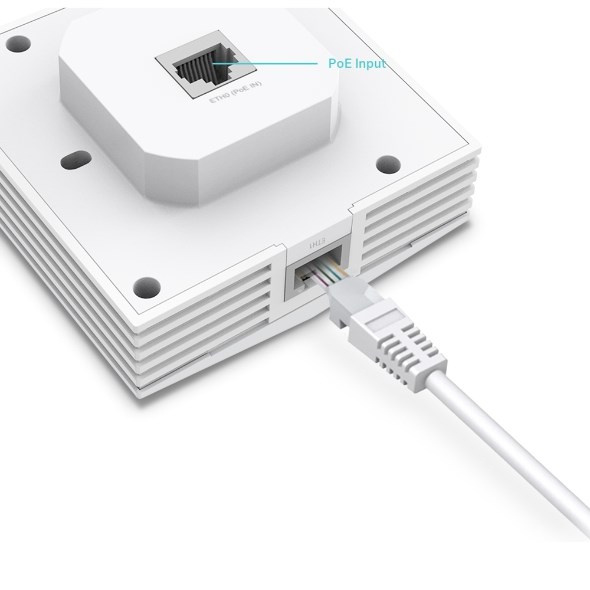

Power Over Ethernet (PoE) | Yes |
IP address filtering | Yes |
Security algorithms | SSH |
MAC address filtering | Yes |
Number of SSID supported | 16 |
Service Set Identifier (SSID) features | Multiple SSIDs |
Remote Authentication Dial-In User Service (RADIUS) | Yes |
Access Control List (ACL) | Yes |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Firmware upgradeable | Yes |
Web-based management | Yes |
Syslog | Yes |
Depth | 86 mm |
Height | 42.6 mm |
Width | 143 mm |
Package depth | 184 mm |
PACKAGE WEIGHT | 400 g |
Package width | 117 mm |
Package height | 56 mm |
Package Type | Box |
Number of products included | 1 pc(s) |
Mounting Kit | Yes |
DC-in jack | Yes |
Ethernet LAN (RJ-45) ports | 4 |
WAN connection | Ethernet (RJ-45) |
Antennas quantity | 2 |
Antenna gain level (max) | 5 dBi |
Antenna type | Internal |
Sustainability certificates | RoHS |
