features | |
Eigenschaft | Schnellinstallationsanleitung auf CD |
Maximum data transfer rate | 300 Mbit/s |
Wi-Fi data rate (max) | 300 Mbit/s |
Ethernet LAN data transfer rates | 10,100 Mbit/s |
frequency band | 2.4 - 2.4835 GHz |
mesh standard | IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
number of users | 40 Benutzer |
number of channels | 13 Kanäle |
Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
Betriebsmodi | Access Point (AP),Gateway,Repeater,WISP |
Recipient Sensitivity | 802.11n: -68 dBm 802.11g:6Mbps: (-90) dBm802.11g:54Mbps: (-72) dBm 802.11b:1Mbps: (-95) dBm 802.11b:11Mbps: (-90) dBm |
safety | |
Supported security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2 |
Features Service Set Identifier (SSID) | SSID-Übertragung ein/aus |
Anzahl der SSID-Unterstützung | 4 |
management functions | |
connections and interfaces | |

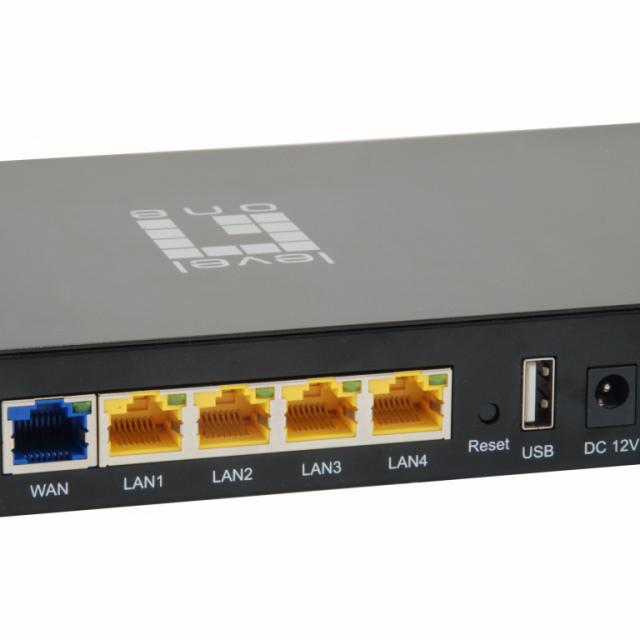

Number of Ethernet LAN ports (RJ-45) | 4 |
Number of USB 2.0 ports | 1 |
WAN port | Ethernet (RJ-45) |
energy | |
AC input voltage | 12 V |
input current | 1.5 A |
Power consumption (standard operation) | 12 W |
Design | |
placement | Tisch |
Product color | Schwarz |

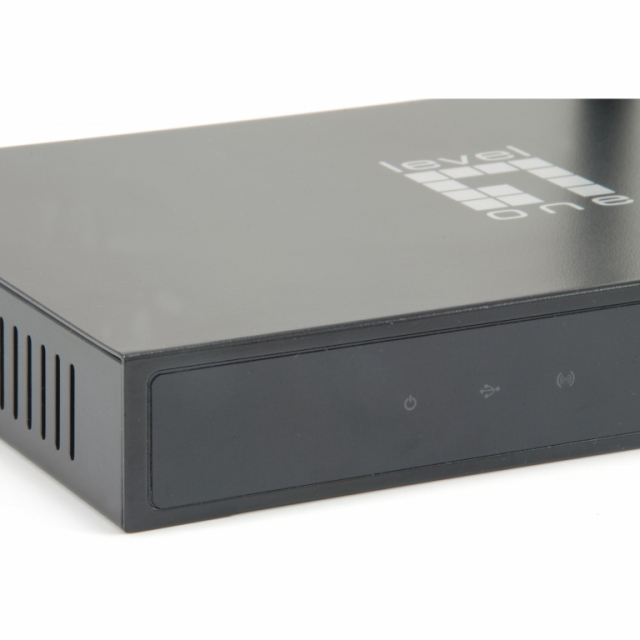

LED indicators | Leistung, WLAN |
Antenna | |
antenna functions | Abnehmbare Antenne |
number of antennas | 2 |
Antenna gain level (max) | 5 dBi |
certificates | |
certification | CE |
weight and dimensions | |
broad | 135 mm |
depth | 220 mm |
height | 30 mm |
Weight | 700 g |
package weight | 1,1 kg |
scope of delivery | |
Supplied cables | LAN (RJ-45) |
operating conditions | |
Operating relative humidity | 5 - 95% |
operating temperatur | 0 - 55 °C |
Storage temperature range | -40 - 75 °C |
logistic data | |
Goods tariff number (HS) | 85176990 |
Country of origin | China |
Shipping box width | 260 mm |
Shipping carton length | 655 mm |
Shipping carton height | 233 mm |
Shipping carton weight | 23 kg |
Number of products per shipping carton | 20 Stück(e) |
