Data transmission speed 300 Mbps | IEEE 802.11a | IEEE 802.11n | Antenna Type Built-in | Antenna Gain 13 dB | Wireless Frequency Range 5.15~5.85GHz | Included Accessories Outdoor wireless access point, 24 V 0.5 A Passive PoE adapter, Pole mount kit, Power cable, Installation guide | Colour White | Dimensions 85.8×43.9×29.7 mm
Vendor Homepage | http://www.tp-link.com/en/products/details/?categoryid=&model=CPE510 |

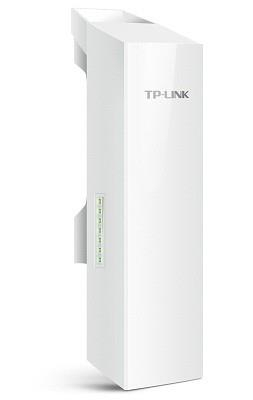

Description | TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
|
Model | CPE510 |
Data transmission speed | 300 Mbps |
IEEE 802.11n | Yes |
IEEE 802.11a | Yes |
10/100M | 2 |
Antenna type | Built-in |
Antenna gain | 13 dB |
Wireless Frequency Range | 5.15~5.85GHz |
Included Accessories | Outdoor wireless access point, 24 V 0.5 A Passive PoE adapter, Pole mount kit, Power cable, Installation guide |
Colour | White |
Dimensions | 85.8×43.9×29.7 mm |
Unit Net Weight | 0.59 kg |
Unit Gross Weight | 0.985 kg |
Unit Box Width | 0.133 |
Unit Box Length | 0.272 |
Unit Box Height | 0.108 |
Full Description Line | Data transmission speed 300 Mbps|IEEE 802.11a|IEEE 802.11n|Antenna Type Built-in|Antenna Gain 13 dB|Wireless Frequency Range 5.15~5.85GHz|Included Accessories Outdoor wireless access point, 24 V 0.5 A Passive PoE adapter, Pole mount kit, Power cable, Installation guide|Colour White|Dimensions 85.8×43.9×29.7 mm |
Category Code | WOD |
