Compliance certificates | RoHS |
Sustainability certificates | RoHS |
Noise level | 40 dB |
Audible alarm modes | Low battery alarm |
Surge protection | Yes |
Output operation voltage (max) | 230 V |
Input Frequency | 50/60 Hz |
Input operation voltage (max) | 300 V |
Output Power | 1200 W |
Output operation voltage (min) | 230 V |
Audible alarm(s) | Yes |
Input operation voltage (min) | 140 V |
Response time | 6 ms |
Output Power Capacity | 2.2 kVA |
Output frequency | 50/60 Hz |
Surge energy rating | 273 J |
UPS topology | Line-Interactive |
Input power factor | 0.54 |
Automatic Voltage Regulation (AVR) | Yes |
Waveform | Sine |
Output frequency regulation | 0.5 Hz |
Output voltage regulation | 10% |
Certification | CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
International Protection (IP) code | IP20 |
LED indicators | Yes |
Product colour | Black |
Cable length | 1.2 m |
Form factor | Compact |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -15 - 40 °C |
Operating relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 3000 m |
Weight | 12.3 kg |
Package height | 297 mm |
Width | 140 mm |
Height | 190 mm |
Package width | 235 mm |
Depth | 390 mm |
Manual | Yes |
CABLES INCLUDED | Input power cable |
USB 2.0 ports quantity | 1 |
Power plug | C19 coupler |
USB Port | Yes |

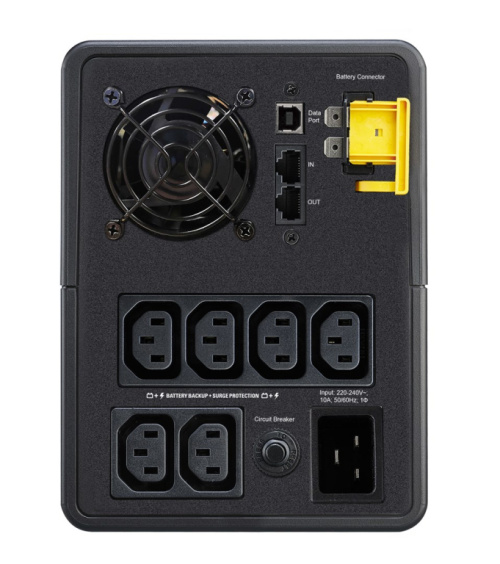

AC outlets quantity | 6 AC outlet(s) |
AC outlet types | C13 coupler |
USB port type | USB Type-B |

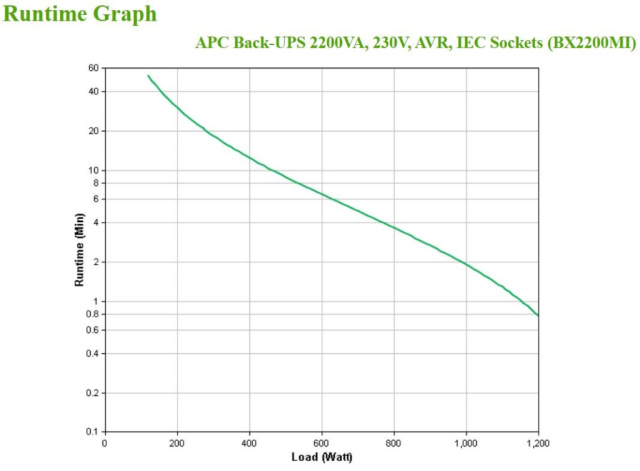

Typical backup time at half load | 8.5 min |
Typical backup time at full load | 1 min |
Battery Recharge Time | 8 h |
Battery Technology | Sealed Lead Acid (VRLA) |
Battery life (max) | 2 year(s) |
Harmonized System (HS) code | 85078000 |
