features | |
USV-Topology | Standby (Offline) |
output capacity | 0,5 kVA |
output power | 300 W |
waveform | Sine |
Input operating voltage (min) | 160 V |
Input operating voltage (max) | 300 V |
input frequency | 50/60 Hz |
Regulation of the output frequency | 47 - 63 Hz |
Anstieg der Energiemenge | 310 J |
Holding time (min.) | 6 ms |
Holding time (max.) | 10 ms |
efficiency | 99% |
noise level | 40 dB |
Eigenschaft | Filterung |
Surge Protection Features | Digital Subscriber Line (DSL), Faxen, Modem, Telefon |
energy conservation properties | Überlastschutz |
Audible alarm modes | Warnung bei geringer Batterie, Überlastungsalarm |

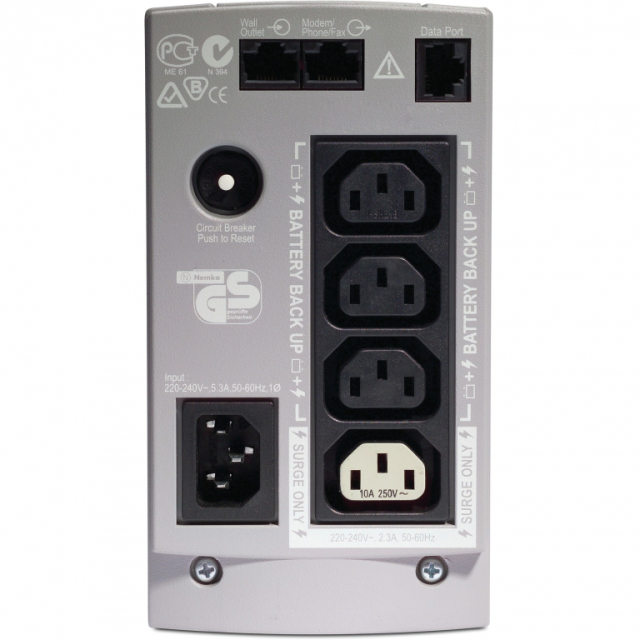

connections and interfaces | |
AC plug types | C13-Koppler |
plug | C14-Koppler |
Number of AC outlets | 4 AC-Ausgänge |
Number of output IEC jumpers | 2 |
battery | |
Rechargeable battery technology | Plombierte Bleisäure (VRLA) |
battery capacity | 83 VAh |
battery voltage | 12 V |

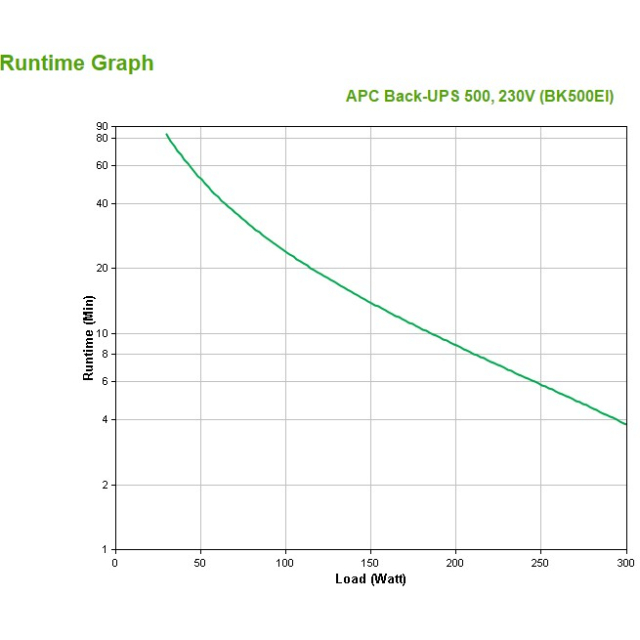

Typical backup time at full load | 3,8 min |
Typical backup time at half load | 13,8 min |
Battery life (max.) | 6 Jahr(e) |
battery charge time | 8 h |
Design | |
form factor | Tower |
cable length | 1,83 m |
Product color | Beige |
LED indicators | Batterieaustausch |
certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -15 - 45 °C |
Operating relative humidity | 0 - 95% |
humidity during storage | 0 - 95% |
operating height | 0 - 3000 m |
storage height | 0 - 15000 m |
Technical details | |
sustainability certificates | ENERGY STAR, Green Premium |
Konformitätsbescheinigungen | RoHS |
weight and dimensions | |
broad | 91 mm |
depth | 284 mm |
height | 165 mm |
Weight | 6,32 kg |
package weight | 7,05 kg |
Supplied cables | Telefon (RJ-11), USB-Kabel |
Included software | PowerChute Personal Edition |
logistic data | |
products per pallet | 48 Stück(e) |
Goods tariff number (HS) | 85078000 |
Number of products per shipping carton | 1 Stück(e) |
Other functions | |
Nominal output voltage | 230 V |
Nominal input voltage | 230 V |
