features | |
USV-Topology | Line-Interaktiv |
output capacity | 1,6 kVA |
output power | 900 W |
waveform | Sine |
Input operating voltage (min) | 140 V |
Input operating voltage (max) | 300 V |
input frequency | 50/60 Hz |
Output operating voltage (min) | 230 V |
Output operating voltage (max) | 230 V |
output frequency | 50/60 Hz |
Regulation of the output frequency | 0.5 Hz |
Regulation of the output voltage | 10% |
Eigenschaft | Betriebsanleitung |
Anstieg der Energiemenge | 273 J |
reaction time | 6 ms |
input power factor | 0,56 |
noise level | 40 dB |
Audible alarm modes | Warnung bei geringer Batterie |

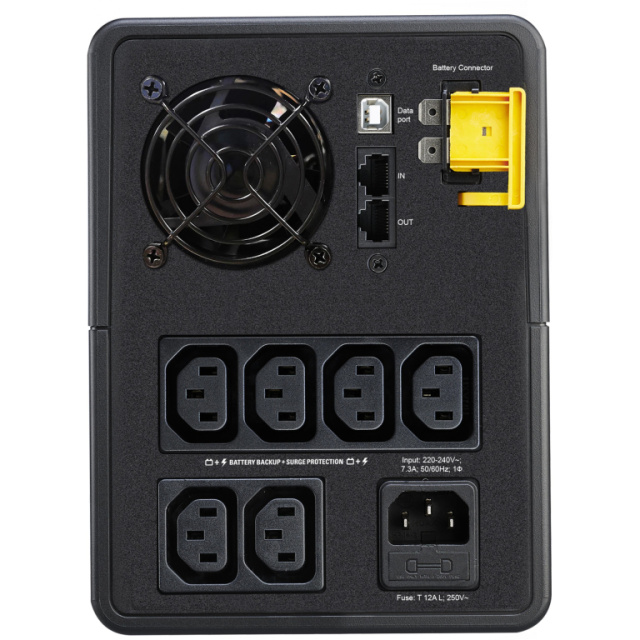

connections and interfaces | |
AC plug types | C13-Koppler |
plug | C13-Koppler |
Number of AC outlets | 6 AC-Ausgänge |
Number of USB 2.0 ports | 1 |
USB-Port-Typ | USB Typ-B |
Number of Ethernet LAN ports (RJ-45) | 2 |
battery | |
Rechargeable battery technology | Plombierte Bleisäure (VRLA) |

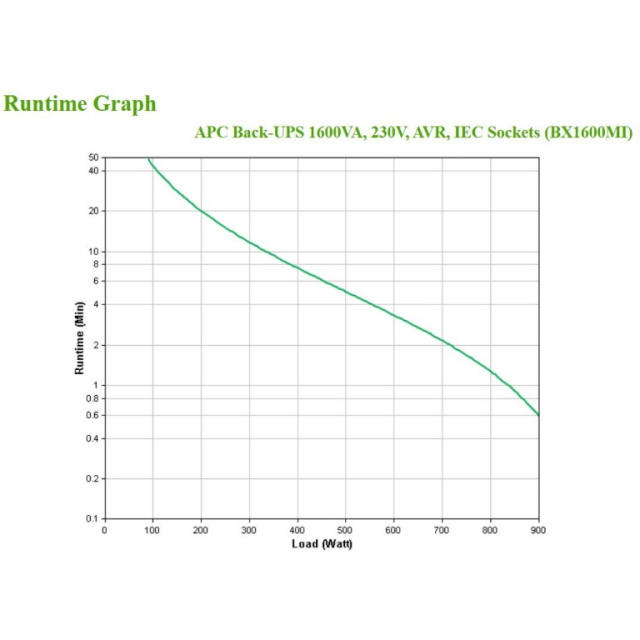

Typical backup time at full load | 1 min |
Typical backup time at half load | 6,5 min |
Battery life (max.) | 2 Jahr(e) |
battery charge time | 8 h |
Design | |
form factor | Kompakt |
cable length | 1,2 m |
Product color | Schwarz |
International degree of protection (IP code) | IP20 |
certification | CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -15 - 40 °C |
Operating relative humidity | 0 - 95% |
operating height | 0 - 3000 m |
Technical details | |
Konformitätsbescheinigungen | RoHS |
weight and dimensions | |
broad | 140 mm |
depth | 390 mm |
height | 190 mm |
Weight | 10,3 kg |
package weight | 11,3 kg |
Supplied cables | Eingangskabel |
logistic data | |
Goods tariff number (HS) | 85078000 |
