features | |
USV-Topology | Line-Interaktiv |
output capacity | 0,9 kVA |
output power | 540 W |
waveform | Sine |
Input operating voltage (min) | 176 V |
Input operating voltage (max) | 294 V |
input frequency | 50/60 Hz |
output frequency | 50/60 Hz |
Eigenschaft | Betriebsanleitung |
current (maximum) | 10 A |
reaction time | 12 ms |
noise level | 45 dB |
Surge Protection Features | Netzwerk |
Audible alarm modes | Alarm bei Batteriebetrieb, Warnung bei geringer Batterie, Überlastungsalarm |
connections and interfaces | |

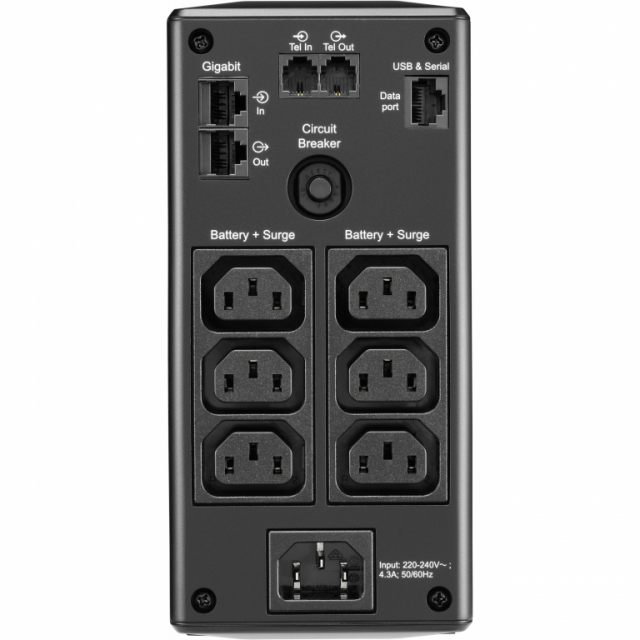

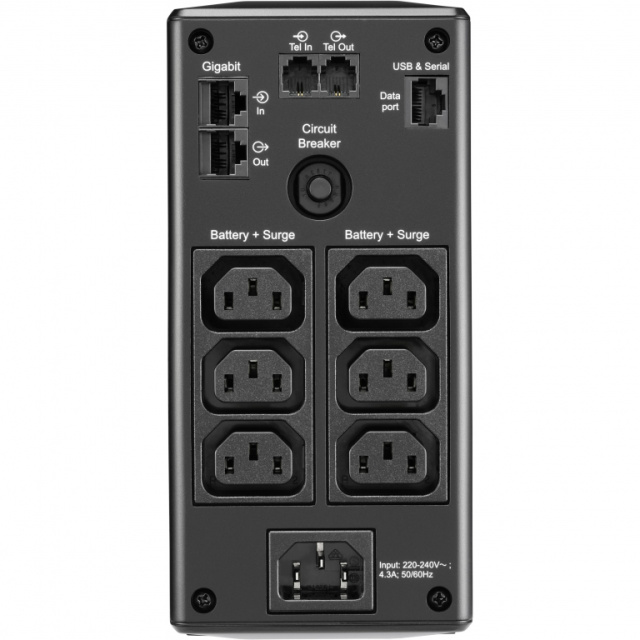

AC plug types | C13-Koppler |
plug | C14-Koppler |
Number of AC outlets | 6 AC-Ausgänge |
Number of Ethernet LAN ports (RJ-45) | 2 |
wiring technology | 10/100/1000Base-T(X) |
battery | |
Rechargeable battery technology | Plombierte Bleisäure (VRLA) |
Battery life (max.) | 5 Jahr(e) |
battery charge time | 12 h |
Design | |
form factor | Tower |
cable length | 1,83 m |
cooling | Passiv |
Product color | Schwarz |
Display-Typ | LCD |
certification | A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -15 - 45 °C |
Operating relative humidity | 0 - 95% |
humidity during storage | 0 - 95% |
operating height | 0 - 3000 m |
storage height | 0 - 15000 m |
Technical details | |
sustainability certificates | Green Premium |
weight and dimensions | |
broad | 91 mm |
depth | 310 mm |
height | 190 mm |
Weight | 7,1 kg |
package weight | 8 kg |
Supplied cables | USB-Kabel |
logistic data | |
Goods tariff number (HS) | 85078000 |
Other functions | |
Nominal output voltage | 230 V |
Nominal input voltage | 230 V |
