features | |
USV-Topology | Line-Interaktiv |
output capacity | 2,2 kVA |
output power | 1980 W |
waveform | Sine |
Input operating voltage (min) | 151 V |
Input operating voltage (max) | 302 V |
input frequency | 50/60 Hz |
Output operating voltage (min) | 220 V |
Output operating voltage (max) | 240 V |
Anstieg der Energiemenge | 375 J |
reaction time | 6 ms |
Output Voltage Total Distortion Factor THD | 5% |
noise level | 55 dB |
energy conservation properties | Überspannung |
Eigenschaft | Software-CD |
Audible alarm modes | Alarm bei Batteriebetrieb, Warnung bei geringer Batterie |

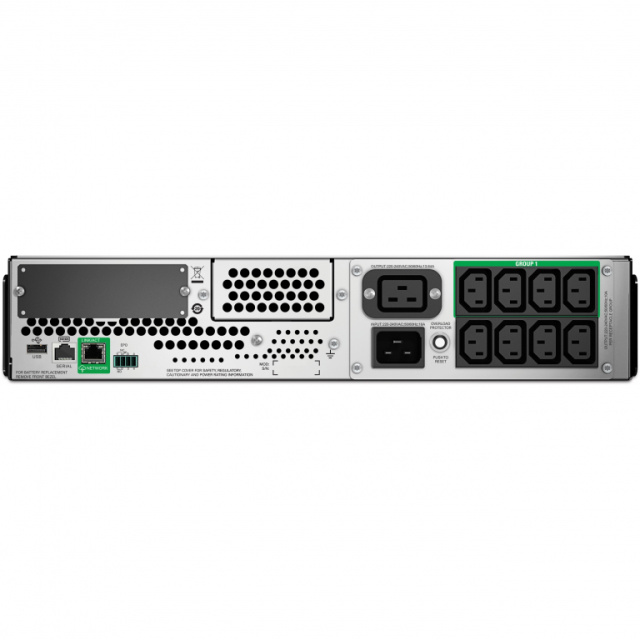

connections and interfaces | |
Number of AC outlets | 9 AC-Ausgänge |
Number of USB 2.0 ports | 1 |
USB-Port-Typ | USB Typ-A |
Serial interface | RJ-45 |
Number of Ethernet LAN ports (RJ-45) | 1 |
battery | |
Rechargeable battery technology | Plombierte Bleisäure (VRLA) |
Number of rechargeable batteries/batteries supported | 1 |
Battery life (max.) | 5 Jahr(e) |
battery charge time | 3 h |
Battery cartridge change | RBC43 |
Design | |
form factor | Rackmount |
rack capacity | 2U |
cable length | 2 m |
Product color | Schwarz, Metallisch |
Display-Typ | LCD |
certification | CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -15 - 45 °C |
Operating relative humidity | 0 - 95% |
humidity during storage | 0 - 95% |
operating height | 0 - 3000 m |
storage height | 0 - 15000 m |
Technical details | |
sustainability certificates | Green Premium |
Konformitätsbescheinigungen | RoHS |
weight and dimensions | |
broad | 432 mm |
depth | 683 mm |
height | 86 mm |
Weight | 42,3 kg |
package weight | 49,7 kg |
Supplied cables | RS-232, USB-Kabel |
logistic data | |
products per pallet | 8 Stück(e) |
Goods tariff number (HS) | 85078000 |
