features | |
USV-Topology | Line-Interaktiv |
output capacity | 1 kVA |
output power | 600 W |
waveform | Sine |
Input operating voltage (min) | 170 V |
Input operating voltage (max) | 300 V |
input frequency | 50/60 Hz |
Output operating voltage (min) | 220 V |
Output operating voltage (max) | 240 V |
output frequency | 50/60 Hz |
Eigenschaft | Software-CD |
Anstieg der Energiemenge | 680 J |
Output Voltage Total Distortion Factor THD | 5% |
noise level | 41 dB |
Audible alarm modes | Alarm bei Batteriebetrieb, Warnung bei geringer Batterie, Überlastungsalarm |
connections and interfaces | |
AC plug types | C13-Koppler |
plug | C14-Koppler |

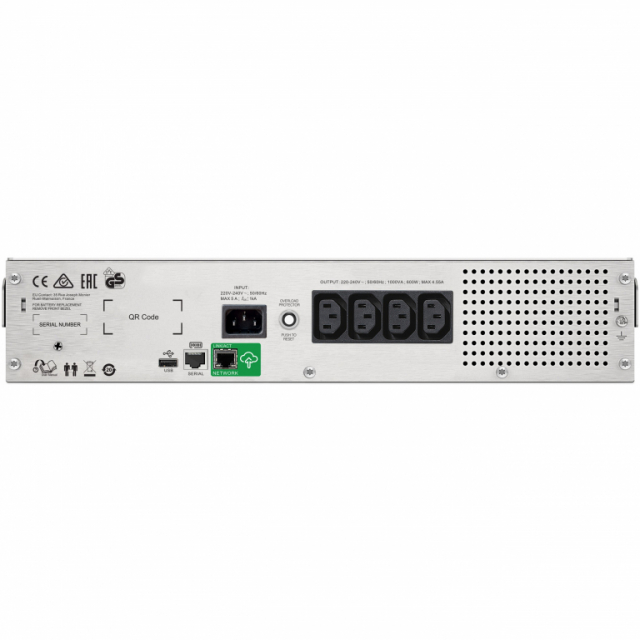

Number of AC outlets | 4 AC-Ausgänge |
Number of Outputs (Battery Backup & Protection) | 4 |

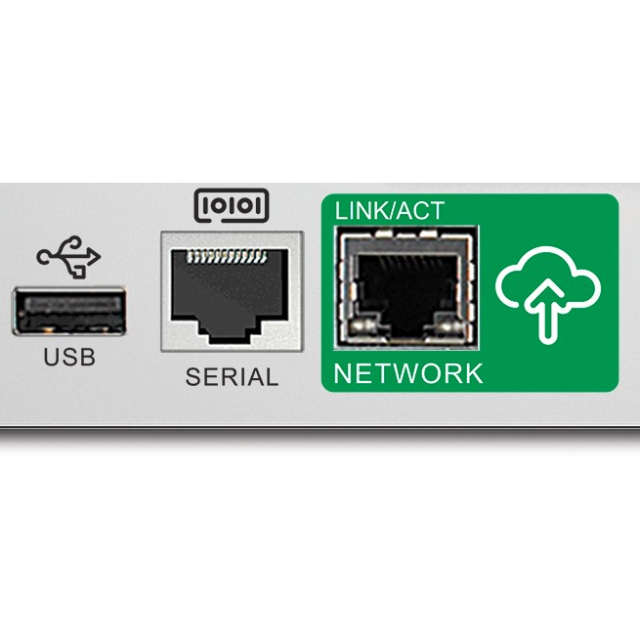

Number of USB 2.0 ports | 1 |
Serial interface | RS-232 |
Number of Ethernet LAN ports (RJ-45) | 1 |
battery | |
Rechargeable battery technology | Plombierte Bleisäure (VRLA) |
Number of rechargeable batteries/batteries supported | 1 |
Battery life (max.) | 6 Jahr(e) |
battery charge time | 3 h |
Battery cartridge change | APCRBC124 |
Design | |
form factor | Rackmount |
rack capacity | 2U |
cable length | 2,44 m |
Product color | Schwarz |
Display-Typ | LCD |
certification | CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -15 - 45 °C |
Operating relative humidity | 0 - 95% |
humidity during storage | 0 - 95% |
operating height | 0 - 3000 m |
storage height | 0 - 15000 m |
Technical details | |
sustainability certificates | ENERGY STAR, Green Premium |
Konformitätsbescheinigungen | RoHS |
weight and dimensions | |
broad | 432 mm |
depth | 406 mm |
height | 86 mm |
Weight | 20,5 kg |
package weight | 20,7 kg |
Supplied cables | RJ-45, RS-232 |
logistic data | |
products per pallet | 16 Stück(e) |
Goods tariff number (HS) | 85078000 |
