features | |
USV-Topology | Line-Interaktiv |
output capacity | 1 kVA |
output power | 700 W |
waveform | Sine |
Input operating voltage (min) | 151 V |
Input operating voltage (max) | 302 V |
input frequency | 50/60 Hz |
Output operating voltage (min) | 220 V |
Output operating voltage (max) | 240 V |
output frequency | 50/60 Hz |
Eigenschaft | Schnellinstallationsanleitung |
Anstieg der Energiemenge | 459 J |
reaction time | 10 ms |
Output Voltage Total Distortion Factor THD | 5% |
noise level | 41 dB |
Audible alarm modes | Alarm bei Batteriebetrieb, Warnung bei geringer Batterie, Überlastungsalarm |
connections and interfaces | |
AC plug types | C13-Koppler, IEC Jumpers |
plug | C14-Koppler |
Number of AC outlets | 8 AC-Ausgänge |

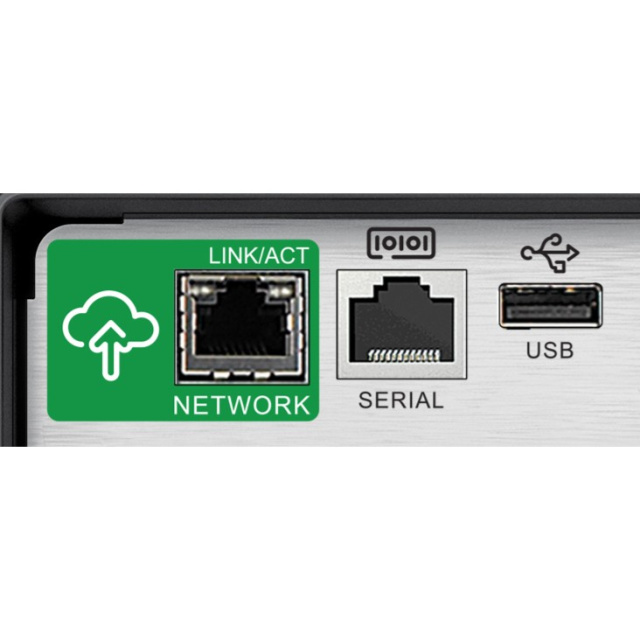

Number of USB 2.0 ports | 1 |
USB-Port-Typ | USB Typ-A |
Number of serial ports | 1 |
Number of Ethernet LAN ports (RJ-45) | 1 |
battery | |
Rechargeable battery technology | Plombierte Bleisäure (VRLA) |
Battery life (max.) | 5 Jahr(e) |
battery charge time | 3 h |
Battery cartridge change | RBC6 |
Design | |
form factor | Mini Tower |
Product color | Schwarz |
Display-Typ | LCD |
certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -15 - 45 °C |
Operating relative humidity | 0 - 95% |
humidity during storage | 0 - 95% |
operating height | 0 - 3000 m |
storage height | 0 - 15000 m |
Technical details | |
sustainability certificates | Green Premium |
Konformitätsbescheinigungen | RoHS |
weight and dimensions | |
broad | 171 mm |
depth | 439 mm |
height | 219 mm |
Weight | 18,9 kg |
package weight | 22,8 kg |
Supplied cables | RJ-45, USB-Kabel |
logistic data | |
products per pallet | 12 Stück(e) |
Goods tariff number (HS) | 85078000 |
