features | |
USV-Topology | Line-Interaktiv |
output capacity | 0,75 kVA |
output power | 500 W |
waveform | Sine |
Input operating voltage (min) | 151 V |
Input operating voltage (max) | 302 V |
input frequency | 50/60 Hz |
Output operating voltage (min) | 220 V |
Output operating voltage (max) | 240 V |
Eigenschaft | Schnellinstallationsanleitung |
Anstieg der Energiemenge | 540 J |
efficiency | 98% |
noise level | 40 dB |

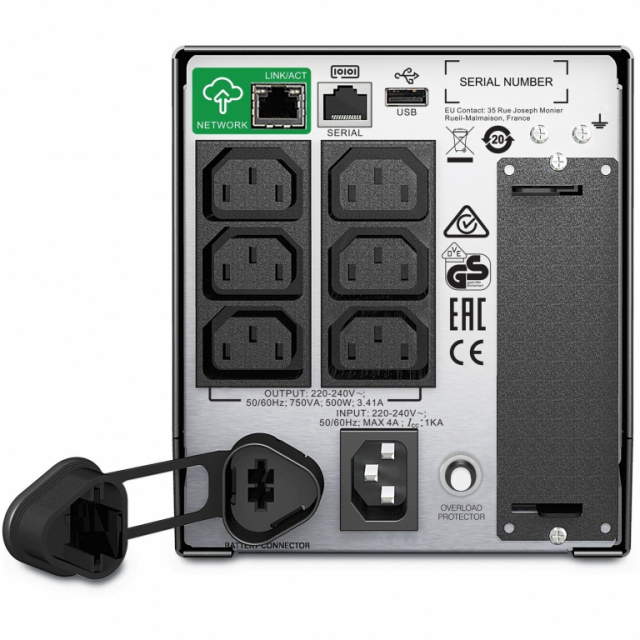

connections and interfaces | |
AC plug types | C13-Koppler |
plug | C14-Koppler |
Number of AC outlets | 6 AC-Ausgänge |
Number of output IEC jumpers | 2 |

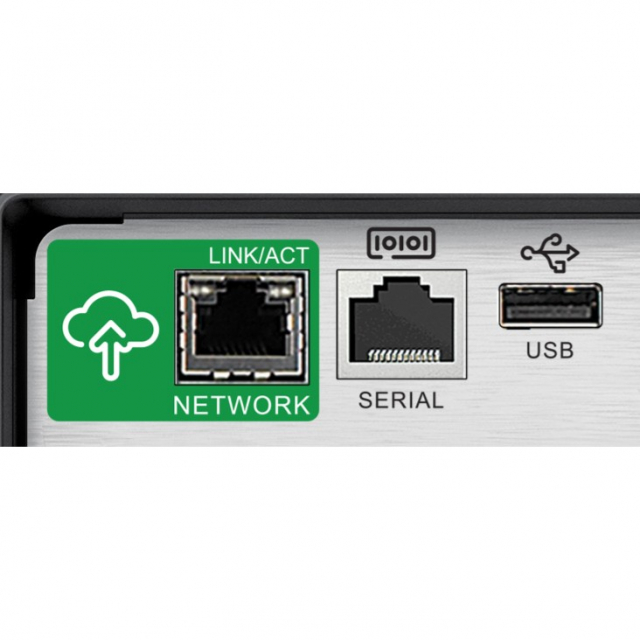

Number of Ethernet LAN ports (RJ-45) | 1 |
battery | |
Rechargeable battery technology | Plombierte Bleisäure (VRLA) |

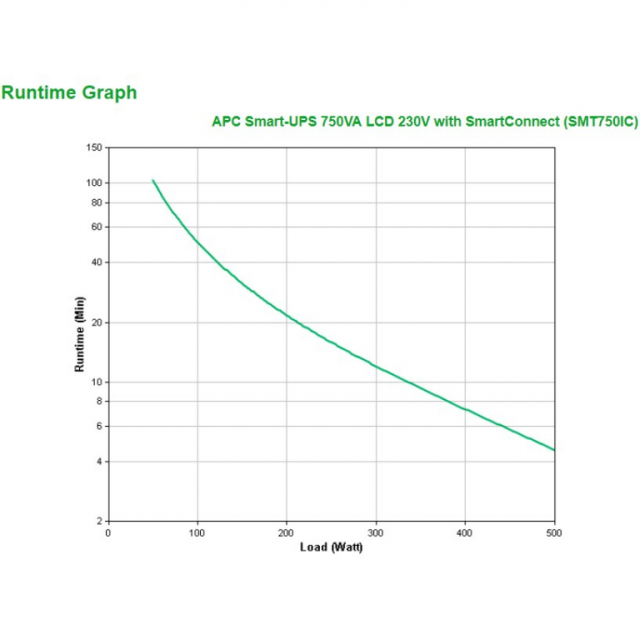

Typical backup time at full load | 4,6 min |
Typical backup time at half load | 15,8 min |
Battery life (max.) | 5 Jahr(e) |
battery charge time | 3 h |
Design | |
form factor | Tower |
cable length | 1,83 m |
Product color | Schwarz |
Display-Typ | LCD |
LED indicators | Status |
certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
operating conditions | |
operating temperatur | 0 - 40 °C |
Storage temperature range | -15 - 45 °C |
Operating relative humidity | 5 - 95% |
humidity during storage | 0 - 95% |
operating height | 0 - 3000 m |
storage height | 0 - 15000 m |
Technical details | |
sustainability certificates | Green Premium |
Konformitätsbescheinigungen | RoHS |
weight and dimensions | |
broad | 138 mm |
depth | 358 mm |
height | 157 mm |
Weight | 13,2 kg |
package weight | 14,2 kg |
Supplied cables | USB-Kabel |
Included software | Powershute Serial Edition |
logistic data | |
products per pallet | 24 Stück(e) |
Goods tariff number (HS) | 85078000 |
