Sustainability compliance | Yes |
Sustainability certificates | CE |
Efficiency | 90% |
UPS topology | Double-conversion (Online) |
Input operation voltage (max) | 276 V |
Output Power | 900 W |
Output operation voltage (max) | 240 V |
Input power factor | 99 |
Number of input phases | 1 |
Efficiency (ECO mode) | 95.5% |
Input operation voltage (min) | 120 V |
Heat dissipation | 375 BTU/h |
Number of output phases | 1 |
Output power factor | 0.9 |
Audible alarm(s) | Yes |
Waveform | Sine |
Output frequency | 50/60 Hz |
Input Frequency | 40/70 Hz |
Output Power Capacity | 1 kVA |
Output operation voltage (min) | 220 V |
Power source type | AC |
Noise level | 41 dB |
Certification | IEC/EN 62040-1
IEC/EN 62040-2
CE |
Control Type | Buttons |
Display type | LCD |
Product colour | Black |
Rack capacity | 2U |
LED indicators | Yes |
Form factor | Tower |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 0 - 96% |
Height | 86.5 mm |
Depth | 438 mm |
Width | 438 mm |
Weight | 17.6 kg |
Quick installation guide | Yes |
CABLES INCLUDED | Output power cable, USB cable |
Rack mount kit | Yes |
AC outlet types | C13 coupler |

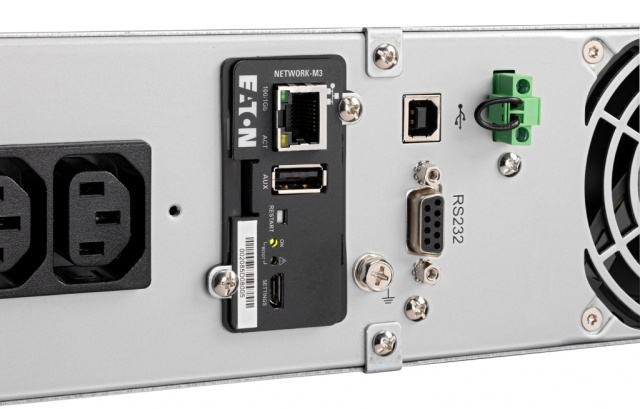

Serial ports quantity | 1 |
Serial interface | Yes |
Serial interface type | RS-232 |
USB Port | Yes |
Power plug | C13 coupler |
RS-232 ports | 1 |
AC outlets quantity | 4 AC outlet(s) |
Typical backup time at half load | 15 min |
Typical backup time at full load | 6 min |
Battery Technology | Lead-Acid |
Number of batteries supported | 3 |
Battery voltage | 12 V |
Battery capacity | 7 Ah |
