features | |
USV-Topology | Doppelwandler (Online) |
output capacity | 1 kVA |
output power | 1000 W |
waveform | Sine |
Input operating voltage (min) | 110 V |
Input operating voltage (max) | 300 V |
input frequency | 40/70 Hz |
Output operating voltage (min) | 208 V |
Output operating voltage (max) | 240 V |
output frequency | 46/64 Hz |
Regulation of the output voltage | 1% |
reaction time | 4 ms |
Number of input phases | 1 |
power factor | 0,99 |
Crest-Factor | 3:1 |
Eigenschaft | Nachhaltigkeitskonformität |
Total Distortion Factor THD (Linear Load) | 2% |
Total Distortion Factor THD (non-linear load) | 4% |
noise level | 50 dB |
Audible alarm modes | Alarm bei Batteriebetrieb, Störung, Warnung bei geringer Batterie, Überlastungsalarm |

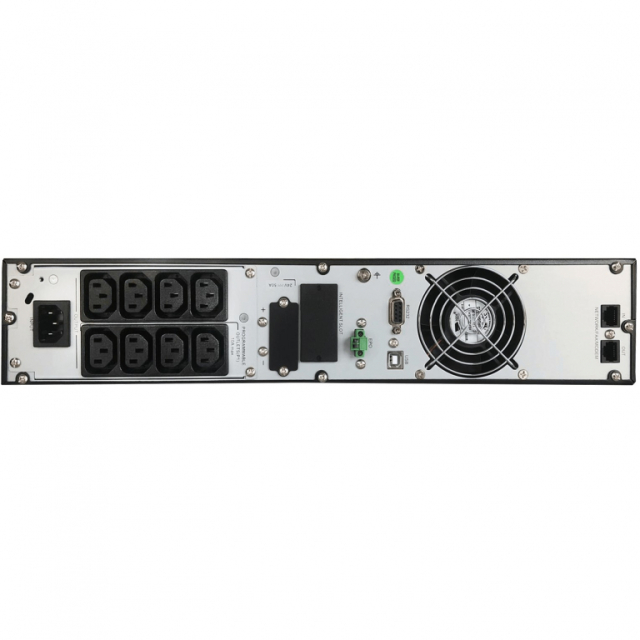

connections and interfaces | |
AC plug types | C13-Koppler |
Number of USB 2.0 ports | 1 |
USB-Port-Typ | USB Typ-B |
Serial interface | RS-232 |

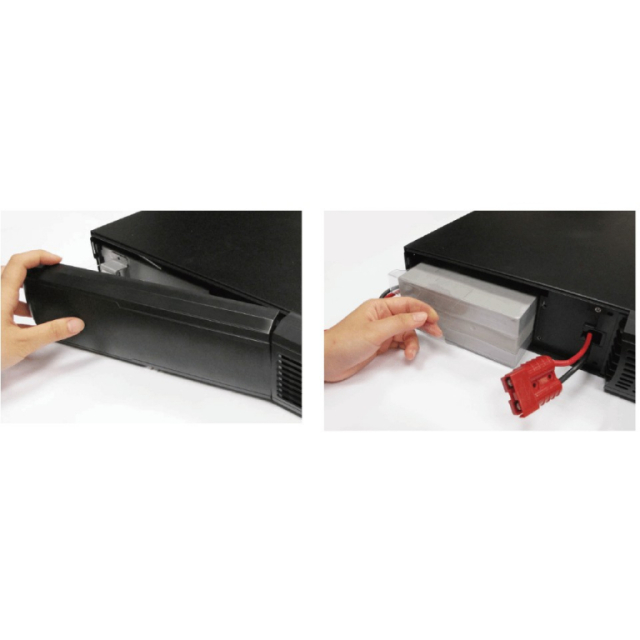

battery | |
battery capacity | 9 Ah |
battery voltage | 12 V |
number of battery cells | 2 |
Typical backup time at full load | 33 min |
battery charge time | 3 h |
Design | |

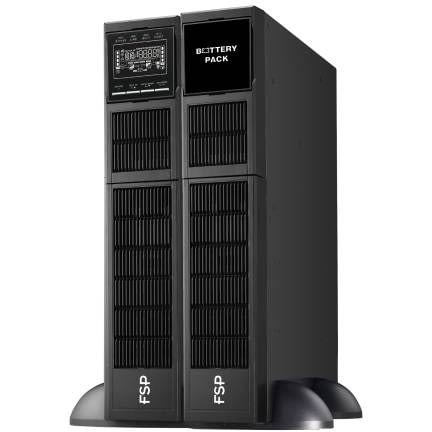

form factor | Rackmount/Tower |
cooling | Aktiv |
Product color | Schwarz |
steering | Tasten |
Display-Typ | LCD |
certification | EMC EN62040-2 C2 |
operating conditions | |
operating temperatur | 0 - 40 °C |
Operating relative humidity | 20 - 90% |
Technical details | |
Konformitätsbescheinigungen | CE |
weight and dimensions | |
broad | 438 mm |
depth | 410 mm |
height | 88 mm |
Weight | 11,6 kg |
logistic data | |
Goods tariff number (HS) | 85078000 |
