features | |
USV-Topology | Line-Interaktiv |
output capacity | 1 kVA |
output power | 600 W |
waveform | Sine |
Input operating voltage (min) | 140 V |
Input operating voltage (max) | 290 V |
input frequency | 50/60 Hz |
Output operating voltage (min) | 110 V |
Output operating voltage (max) | 240 V |
output frequency | 50/60 Hz |
Regulation of the output voltage | 10% |
Eigenschaft | Betriebsanleitung |
reaction time | 6 ms |
noise level | 40 dB |
energy conservation properties | Batterieentladung, Überlast, Überlastschutz |
Audible alarm modes | Alarm bei Batteriebetrieb, Störung, Warnung bei geringer Batterie, Überlastungsalarm |

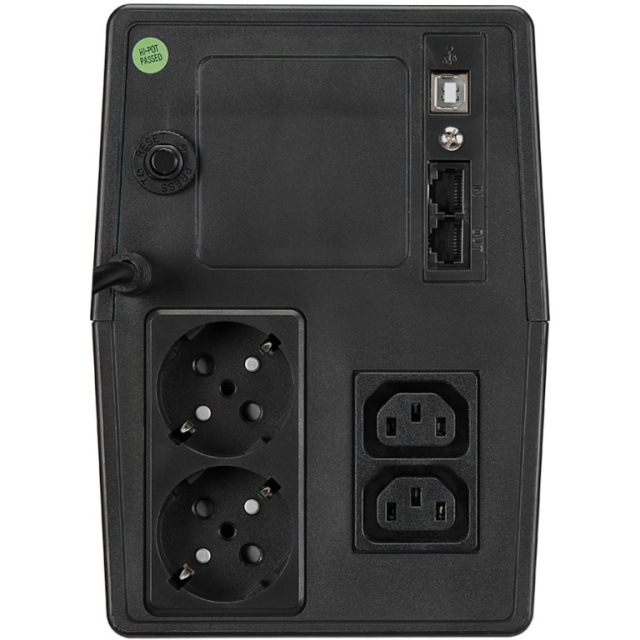

connections and interfaces | |
Number of AC outlets | 2 AC-Ausgänge |
Number of output IEC jumpers | 2 |
Number of USB 2.0 ports | 1 |
USB-Port-Typ | USB Typ-B |
Number of Ethernet LAN ports (RJ-45) | 2 |
battery | |
battery capacity | 7 Ah |
battery voltage | 12 V |
Number of rechargeable batteries/batteries supported | 2 |
Design | |
form factor | Mini Tower |
Product color | Schwarz |
steering | Tasten |
Display-Typ | LCD |
operating conditions | |
operating temperatur | 0 - 40 °C |
Operating relative humidity | 0 - 90% |
Technical details | |
Konformitätsbescheinigungen | CE, cTUVus |
scope of delivery | |
weight and dimensions | |
broad | 130 mm |
depth | 320 mm |
height | 182 mm |
Weight | 8,2 kg |
logistic data | |
Goods tariff number (HS) | 85078000 |
