Output frequency | 50 Hz |
Automatic Voltage Regulation (AVR) | Yes |
Number of input phases | 1 |
Output Power Capacity | 0.6 kVA |
Input operation voltage (max) | 268 V |
Input operation voltage (min) | 162 V |
Output Power | 360 W |
Auto-restart | Yes |
Crest factor | 3:1 |
Maximum current | 16 A |
Power protection features | Overload |
Output operation voltage (max) | 220 V |
Output voltage regulation | -10 - 10% |
Noise level | 45 dB |
Input Frequency | 50/60 Hz |
Number of output phases | 1 |
UPS topology | Line-Interactive |
Waveform | Pseudo sine |

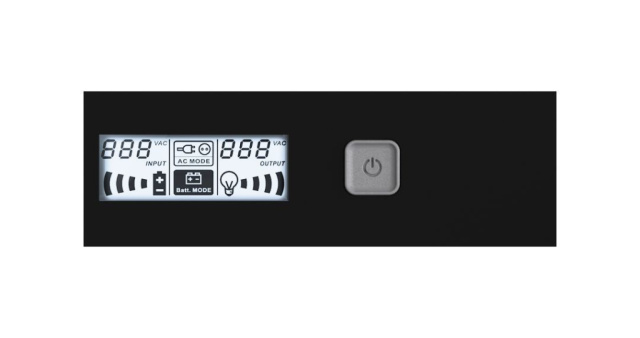

Display type | LCD |
Product colour | Black |
Form factor | Rackmount |
Operating relative humidity (H-H) | 0 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Height | 88 mm |
Weight | 6.5 kg |
Width | 440 mm |
Depth | 230 mm |
PACKAGE WEIGHT | 8.6 kg |
Manual | Yes |
CABLES INCLUDED | Input power cable, Output power cable |

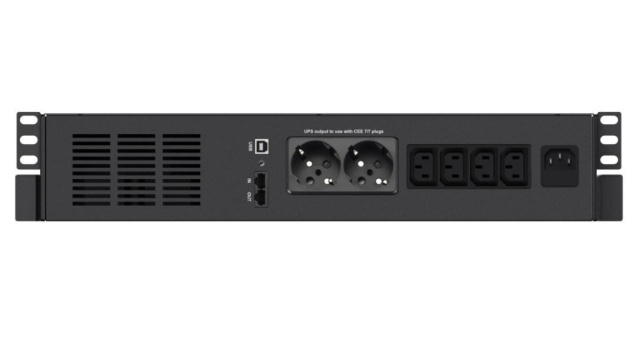

AC outlet types | C13 coupler |
Ethernet LAN (RJ-45) ports | 2 |
AC outlets quantity | 6 AC outlet(s) |
USB Port | Yes |
USB port type | USB Type-B |
USB 2.0 ports quantity | 1 |
Typical backup time at half load | 9 min |
Battery voltage | 12 V |
Battery Technology | Sealed Lead Acid (VRLA) |
Battery Recharge Time | 6 h |
Cold start | Yes |
Typical backup time at full load | 10 min |
Battery capacity | 7 Ah |
