Waveform | Pure sine |
Power protection features | Battery discharge |
Automatic Voltage Regulation (AVR) | Yes |
Input operation voltage (max) | 290 V |
Audible alarm(s) | Yes |
Output Power | 480 W |
Output operation voltage (max) | 240 V |
Surge protection | Yes |
Input operation voltage (min) | 162 V |
Output power factor | 0.6 |
Output Power Capacity | 0.8 kVA |
Efficiency | 96.2% |
Output voltage regulation | 10% |
Output frequency regulation | 1 Hz |
Input Frequency | 50/60 Hz |
Output frequency | 50/60 Hz |
Output operation voltage (min) | 220 V |
UPS topology | Line-Interactive |
Audible alarm modes | Alarm when on battery, Fault, Low battery alarm |
Form factor | Compact |
Product colour | Black |
Display type | LCD |
Operating relative humidity (H-H) | 0 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Weight | 6 kg |
Package height | 228 mm |
Package width | 140 mm |
Height | 145 mm |
Depth | 328 mm |
Width | 100 mm |
Manual | Yes |
CABLES INCLUDED | Input power cable, USB cable |
Ethernet LAN (RJ-45) ports | 2 |
USB 2.0 ports quantity | 1 |

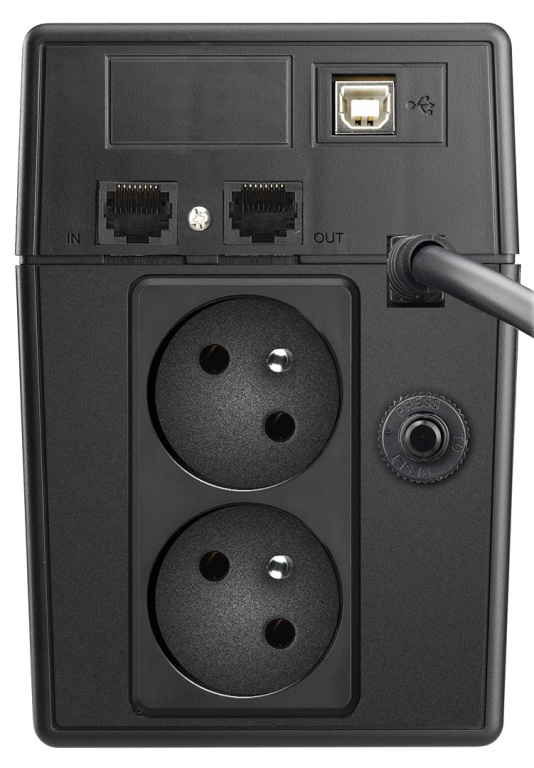

AC outlets quantity | 2 AC outlet(s) |
USB Port | Yes |
AC outlet types | Type E |
Battery recharge time (90%) | 7 h |
Number of batteries supported | 1 |
Battery capacity | 9 Ah |
Battery voltage | 12 V |
Typical backup time at half load | 5 min |
Products per master (outer) case | 4 pc(s) |
Master (outer) case width | 580 mm |
Master (outer) case height | 250 mm |
Master (outer) case gross weight | 27.5 kg |
Master (outer) case length | 390 mm |
Harmonized System (HS) code | 85078000 |
