Input Frequency | 50 Hz |
Output operation voltage (min) | 184 V |
Number of output phases | 1 |
UPS topology | Line-Interactive |
Automatic Voltage Regulation (AVR) | Yes |
Power protection features | Overload |
Output Power Capacity | 1.2 kVA |
Output operation voltage (max) | 264 V |
Audible alarm(s) | Yes |
EMI/RFI noise filtering | Yes |
Output frequency | 50 Hz |
Surge protection | Yes |
Waveform | Sine |
Input operation voltage (max) | 264 V |
Input operation voltage (min) | 168 V |
Number of input phases | 1 |
Output Power | 780 W |
International Protection (IP) code | IP20 |
Rack capacity | 2U |

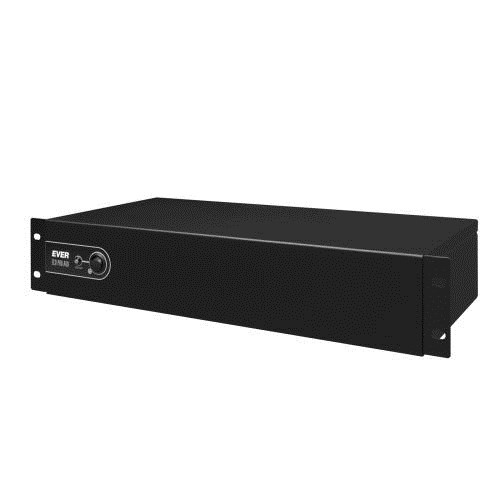

Form factor | Rackmount |
Product colour | Black |
Storage relative humidity (H-H) | 20 - 95% |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 20 - 80% |
Depth | 200 mm |
Height | 88 mm |
Package height | 160 mm |
Package width | 505 mm |
Width | 485 mm |
Weight | 11.4 kg |
AC outlet types | IEC 320 |
USB port type | USB Type-B |
USB Port | Yes |
AC outlets quantity | 3 AC outlet(s) |
Cold start | Yes |
Battery capacity | 5 Ah |
Number of batteries supported | 2 |
Battery Technology | Sealed Lead Acid (VRLA) |
Battery voltage | 12 V |
