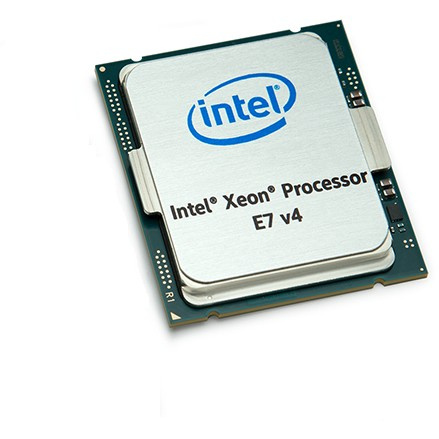

| processor | E7-4850V4 |
| processor manufacturer | Intel |
| Base frequency of the processor | 2,1 GHz |
| processor family | Intel® Xeon® E7 v4 |
| number of CPU cores | 16 |
| processor socket | LGA 2011 (Socket R) |
| component for | Server/Arbeitsstation |
| Processor lithography | 14 nm |
| processor series | Intel Xeon E7-4800 v4 |
| processor threads | 32 |
| system bus rate | 8 GT/s |
| Processor Operating Modes | 64-Bit |
| Processor Boost Frequency | 2,8 GHz |
| processor cache | 40 MB |
| processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 115 W |
| packaging type | Einschub |
| Stepping | B0 |
| Bus Typ | QPI |
| Anzahl der QPI links | 3 |
| Memory bandwidth supported by the processor (max). | 85 GB/s |
| Processor code name | Broadwell |
| processor code | SR2S2 |
| ARK processor detection | 93806 |
| Storage | |
| Maximum internal memory supported by the processor | 3,07 TB |
| Memory types supported by the processor | DDR4-SDRAM, DDR3-SDRAM |
| Memory clock speeds supported by the processor | 1066,1333,1600,1866 MHz |
| memory channels | Vierfach-Kanal |
| Eigenschaft | Konfliktloser-Prozessor |
| features | |
| market segment | Server |
| Maximum number of PCI Express lanes | 32 |
| PCI-Express-Slots-Version | 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Supported Instruction Sets | AVX 2.0 |
| scalability | S4S |
| CPU configuration (max) | 4 |
| Physical Address Extension (PAE) | 46 Bit |
| PCI Express CEM revision | 3.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification System for Automated Tracking (CCATS) | G077159 |
| Processor specifics | |
| Intel® Turbo-Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 2,8 GHz |
| Intel® Instruction Replay Technologieversion | 0,00 |
| Intel® Secure Key Technologieversion | 1,00 |
| Intel® TSX-NI-Version | 1,00 |
| operating conditions | |
| Tcase | 69 °C |
| Technical details | |
| Bus-Bandbreite | 8 |
| Bus-Typ-Einheiten | GT/s |
| Start date | Q2'16 |
| Prozessor Cache | 40960 KB |
| product type | Processor |
| Status | Launched |
| Markenname Prozessor | Intel Xeon |
| Supported memory | DDR4-SDRAM, DDR3-SDRAM |
| Last change | 63903513 |
| product family | Intel Xeon Processor E7 v4 Family |
| Busgeschwindigkeit | 8 GT/s |
| Instandhaltungsstatus | End of Servicing Updates |
| Datum des Endes der Wartungsaktualisierung | Thursday, June 30, 2022 |
| logistic data | |
| Goods tariff number (HS) | 8542310001 |
| weight and dimensions | |
| Processor Package Size | 45mm x 52.5mm |
| Other functions | |
| RAM memory maximum | 3145728 MB |
