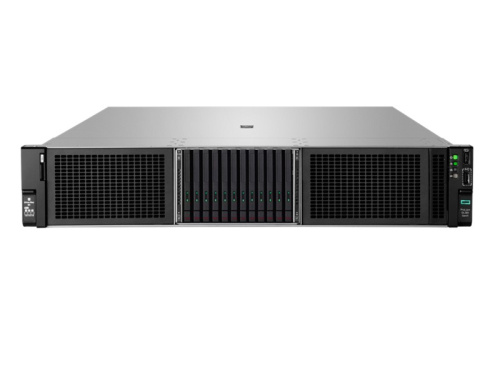

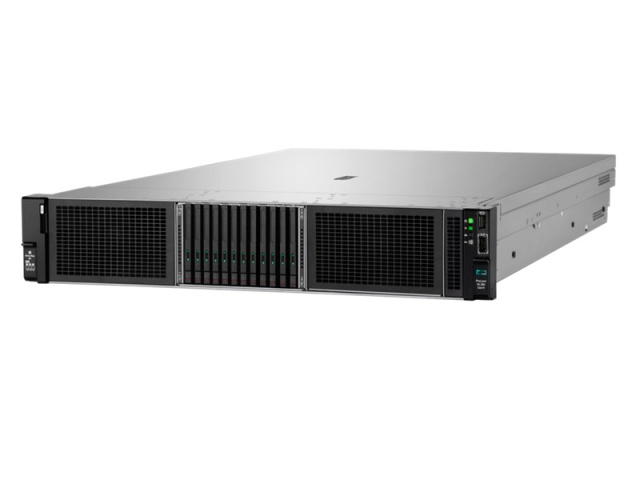

HPE ProLiant DL380 Gen11 6526Y 2.8GHz 16c 1P 128GB-R 8SFF NS204i-u NC BCM57416 2x1000W PS EU Server P77241-425
HPE ProLiant DL380 Gen11 8 SFF rack server with one Intel Xeon Gold 6526Y processor, 128 GB DDR5 RDIMM memory, HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device, two HPE 1000W Flex Slot Titanium Hot Plug Power Supply, and a 3/3/3 warranty
Model | |
Motherboard | |
Chipset type | |
Number of CPUs installed | 1 |
Max supported number of processors | 2 |
CPU series | Intel Xeon |
CPU model | 6526Y |
CPU frequency | 2.8 |
Number of cores | 16C |
CPU - other information | |
RAM memory installed | 128 |
Max Memory Size | 8 |
Memory type | DDR5 |
Kind of memory | Registered |
Memory frequency | 5600 MHz |
Number of memory slots used | 4 |
Number of available memory slots | 28 |
Total number of memory slots | 32 |
RAM - other information | |
Network interface | 2 x 10Gbit/s 10GBase-T |
Network card - other information | |
DISK CONTROLLER | Card |
Controller - other information | |
Battery backup | Bettery |
Form factor (width) | 2,5'' (SFF) |
Hot-swapping support | Yes |
Hard drive cage interfaces | NVMe |
Max. number of disks in current configuration | 8 |
Number of HDDs installed | |
Optical disk drive | None |
Internal backup device support | No |
Graphics | |
Expansion slots | 1 x PCIe 5.0 x 16 |
I/O connectors | 4 x USB 3.0 |
Number of power supplies installed | 2 |
Max. number of power supplies | 2 |
Power supply output current | 1000 |
PSU efficiency | 96 |
Hot-plug power supply support | Yes |
Number of fans | 6 |
Hot-plug fans support | Yes |
Housing | Rack 2U |
Height | 8.75 |
Width | 44.8 |
Depth | 72.7 |
Weight | 33 |
Tower to rack conversion support | No |
Warranty | |
Accessories included | |
Color | Not applicable |
Designation | CE+WEEE |
