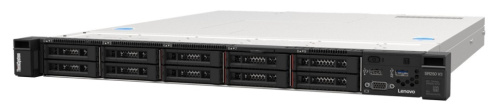

The Lenovo ThinkSystem SR250 V3 is a high-value, single-socket, 1U rack server designed for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-level reliability, manageability, and security. The server supports the new Intel Xeon E-2400 series processors, previously codenamed Raptor Lake-E.
Model | |
Motherboard | |
Chipset type | |
Number of CPUs installed | 1 |
Max supported number of processors | 1 |
CPU series | Intel Xeon |
CPU model | E-2436 |
CPU frequency | 2.9 |
Number of cores | 6C |
CPU - other information | |
RAM memory installed | 32 |
Max Memory Size | 128 |
Memory type | DDR5 |
Kind of memory | ECC |
Number of memory slots used | 1 |
Number of available memory slots | 3 |
Total number of memory slots | 4 |
RAM - other information | |
Network interface | 2 x 10/100/1000 Mbit/s |
Network card - other information | |
DISK CONTROLLER | SAS |
RAID levels | |
Controller - other information | |
Form factor (width) | 2,5'' (SFF) |
Hot-swapping support | Yes |
Max. number of disks in current configuration | 8 |
Number of HDDs installed | |
Optical disk drive | None |
Internal backup device support | No |
Graphics | |
Expansion slots | 1 x PCIe 3.0 x 8 |
I/O connectors | 2 x USB 3.2 Type-A Gen 1 |
Number of power supplies installed | 1 |
Max. number of power supplies | 2 |
Power supply output current | 800 |
Hot-plug power supply support | Yes |
Number of fans | 4 |
Hot-plug fans support | No |
Housing | Rack 1U |
Height | 43 |
Width | 434.4 |
Depth | 561 |
Weight | 12.3 |
Tower to rack conversion support | No |
Accessories included | |
Color | Black |
Designation | CE+WEEE |
