Product colour | Black |
Housing material | Plastic |
Depth (min) | 18 cm |
Height | 334 mm |
Width | 334 mm |
PACKAGE WEIGHT | 6.56 kg |
Package width | 265 mm |
Package depth | 825 mm |
Package height | 77 mm |
Mounting Kit | Yes |
Manual | Yes |

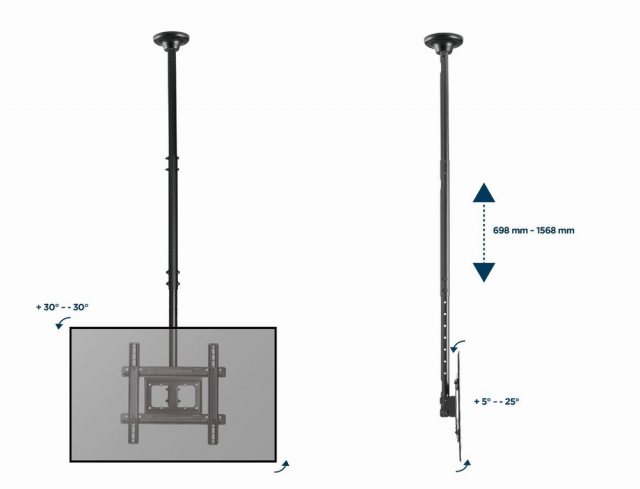

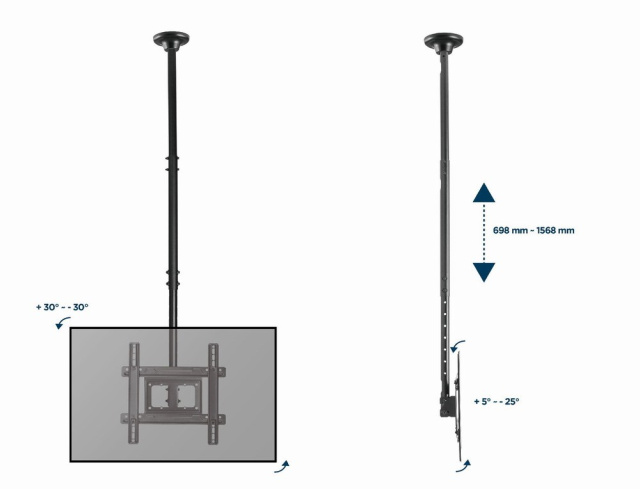

Tilt angle range | -25 - 5° |
Type | Full motion |
Ceiling mounting tube length (min) | 69.8 cm |
Swivel angle range | -30 - 30° |
Tilt adjustment | Yes |
Ceiling mounting tube length (max) | 156.8 cm |
Cable management | Yes |
Swivelling | Yes |
Master (outer) case width | 840 mm |
Master (outer) case length | 280 mm |
Customs product code (TARIC) | 8302500000 |
Master (outer) case gross weight | 19.7 kg |
Master (outer) case volume | 0.059976 cm³ |
Master (outer) case height | 255 mm |
Products per master (outer) case | 3 pc(s) |
Warnings | Regularly check the fixings and tighten screws as necessary to prevent the monitor/TV from falling. |
Maximum VESA mount | 400 x 400 mm |
Mounting Type | Ceiling |
Minimum VESA mount | 100 x 100 mm |
Maximum weight capacity | 50 kg |
Maximum screen size | 177.8 cm (70") |
Minimum screen size | 81.3 cm (32") |
