Processor manufacturer | AMD |
Compatible processor series | AMD Ryzen™ 5 |
Processor Socket | Socket AM5 |
Motherboard form factor | micro ATX |
audio chip | Realtek ALC897 |
Windows operating systems supported | Windows 11 x64 |
Motherboard chipset family | AMD |
MOTHERBOARD CHIPSET | AMD B650 |
Audio output channels | 7.1 channels |
Supported memory types | DDR5-SDRAM |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Number of memory slots | 4 |
Maximum internal memory | 128 GB |
Unbuffered memory | Yes |
Depth | 244 mm |
Width | 244 mm |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
LAN controller | Dragon RTL8125BG |
Wi-Fi | No |
EPS power connector (8-pin) | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
TPM connector | Yes |
CPU fan connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Thunderbolt headers | 1 |
Number of SATA III connectors | 4 |
USB 2.0 connectors | 2 |
Front panel audio connector | Yes |
ATX Power connector (24-pin) | Yes |
BIOS Type | UEFI AMI |
Supported storage drive interfaces | M.2, SATA III |
Microphone in | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |

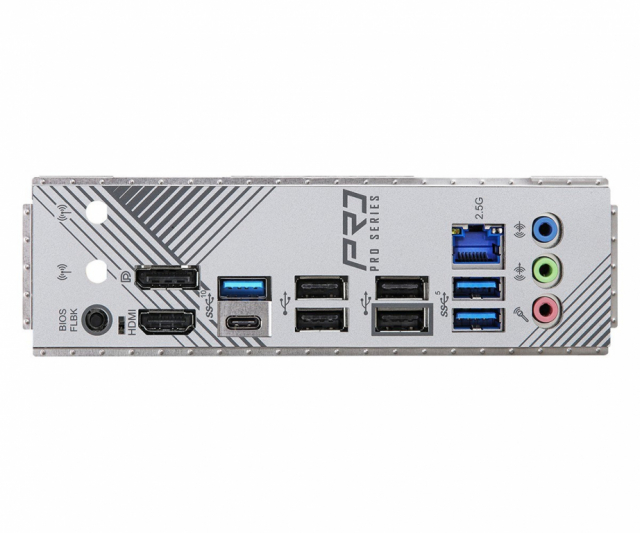

DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
HDMI ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
Headphone outputs | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 4 |
PCI Express x16 (Gen 3.x) slots | 1 |
Number of M.2 (M) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
